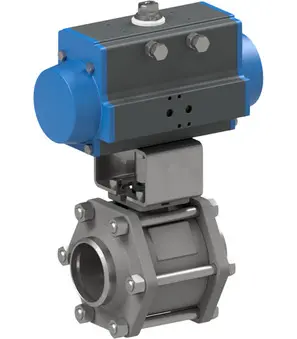

Ball valve with pneumatic actuator BA034-80-S0-A
  2. STASTO Store
  3. Ball valve with pneumatic actuator BA034-80-S0-A
BA034-65-S0-3C-ABS51-C001-03-C002-31-6-EB0X01-C0
BA034-65-S0-3C-ABS51-C001-03-C002-31-6-EB0X01-C0
8.487,40 lei
8.487,40 lei
Ball valve with pneumatic actuator BA034-100-S0-A
Ball valve with pneumatic actuator BA034-100-S0-A
999.999,00 lei
999.999,00 lei

Ball valve with pneumatic actuator BA034-80-S0-A

Ball valve with pneumatic actuator Series BA034-S0-A; ATEX II 2 G/D; TA-Luft; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Single acting actuator ATEX II 2G/D c T6; Control pressure 5,5...8bar; Medium temperature -20...+160°C; Nominal diameter 80mm; Pressure range 0...16bar; Length 180mm; Actuator PAS1255

Intrastat No.: 84818081
Country of origin: Italy
Weight: 28.42 Kg
Short Itemnumber:BA03480S0A
https://www.stasto.ro/web/image/product.template/151824/image_1920?unique=209183f

ball valve with pneumatic actuator series BA034-S0-A; ATEX II 2 G/D; TA-Luft; butt weld ends; body, ball AISI 316; seals PTFE-reinforced/FKM; single acting actuator ATEX II 2G/D c T6; control pressure 5,5...8bar; medium temperature -20...+160°C; nominal diameter 80mm; pressure range 0...16bar; length 180mm; actuator PAS1255

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

  • Butt weld ends
  • Attachment interface VDI/VDE 3845
  • Attachment interface 2 VDI/VDE 3845
  • Valve interface Namur
  • DN
  • Length
  • Function
  • Connector size
  • Switch type
  • Design
  • Voltage
  • Switching capacity
  • Pressure range
  • Contact material
  • Material of case
  • Coil
  • Actuator

This combination does not exist.

Availability:
Contact Us
dimension
DN 80 mm
Length 180 mm
design
Design ATEX
pressure
Pressure range 0...16 bar
characteristics
Actuator PAS1255

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Ball valve with pneumatic actuator Series BA034-S0-A_EN.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Kugelhahn mit Druckluftdrehantrieb Serie BA034-S0-A_DE.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa pneumatskim aktuatorom serije BA034-S0-A_SRLATIN.pdf
Download
Ball valve made of stainless steel BA034-80-L-A
BA034-80-L-A x 1.0
Ball valve made of stainless steel BA034-80-L-A
Ball valve made of stainless steel Series BA034-L-A; ATEX II 2 G/D; TA-Luft; Full bore; Three-parts type; Butt weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; Nominal diameter 80mm; Pressure range 0...16bar; Length 180mm
Add to Cart
Pneumatic actuator PAS1255
PAS1255 x 1.0
Pneumatic actuator PAS1255
Pneumatic actuator Series PAS; ATEX II 2 G/D; Single acting; Rotation angle 90°; According to ISO 5211/NAMUR; Operating pressure range Max. 8bar; Diameter 125mm; Flange ISO5211 F07/F10; Female square 22mm; Torque at 5,5bar 88,1Nm
Add to Cart
dimension
DN 80 mm
Length 180 mm
design
Design ATEX
pressure
Pressure range 0...16 bar
characteristics
Actuator PAS1255
