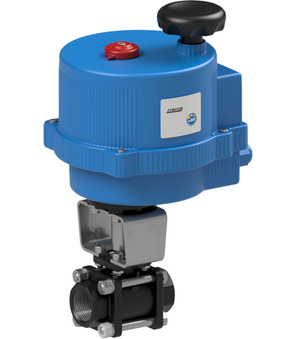

Ball valve with electrical actuator BA028-114-0L-01

Name: Ball valve with electrical actuator BA028-114-0L-01
Brand: STASTO
SKU: BA028-114-0L-01
Price: 999999.0 RON
Availability: InStock

Ball valve with electrical actuator; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 11/4"; DN 32mm; Pressure range 0-25bar; Length 106mm; Control ball V 30...60°; Operating time 119s; Voltage 15-30V/50-60Hz, 12-48VDC

Intrastat No.: 84818081
Country of origin: France

Short Itemnumber: BA0281140L01

ball valve with electrical actuator; female thread; body steel; ball AISI 304; seals PTFE/FKM; medium temperature -10...+160°C; RP 11/4"; DN 32mm; pressure range 0-25bar; length 106mm; Control ball V 30...60°; operating time 119s; voltage 15-30V/50-60Hz, 12-48VDC

999.999,00 lei 999999.0 RON 999.999,00 lei

excl. tax

Female thread
- RP 2"
DN
- 50 mm
Length
- 136 mm
Voltage
- 24VAC/DC
Pressure range
- 0...25 bar
Actuator
- VB060L
Operating time
- 9 s
Brand
- STASTO

This combination does not exist.

Availability:

See availability

Add to cart

Technical specifications

Pressure range	0...25 bar
Female thread	RP 2"
DN	50 mm
Length	136 mm

All specifications (7)

Specifications
Spare Parts

Pressure range	0...25 bar
Female thread	RP 2"
DN	50 mm
Length	136 mm
Operating time	9 s
Voltage	24VAC/DC
Brand	STASTO

BA028-114-L-01 x 1.0 Pcs

Ball valve made of steel BA028-114-L-01

Ball valve made of steel; Full bore; Three-parts type; Female thread; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; RP 11/4"; Nominal diameter 32mm; Pressure range 0-25bar; Length 106mm; Control ball V 30...60°

ER100-0N119-Q22 x 1.0 Pcs

Electrical actuator ER100-0N119-Q22

Electrical actuator Series ER; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP66; Torque 100Nm; Operating time 119s; Flange ISO5211 F05/F07-Stern 22mm; Voltage 15-30V/50-60Hz, 12-48VDC

ATSV0704 x 1.0 Pcs
