AB1V2H2-5S-200-B

AB1V2H2-5S-200-B

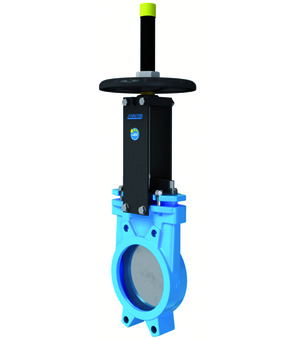

Knife gate valve with handwheel; Wafer type; Rising stem; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM With Copper Scraper; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Medium temperature -5...+90 °C; DN 200mm; Length 60mm; Pressure range 0…10bar

Intrastat No.: 84818061
Country of origin: Spain
Weight: 29.05 Kg
Short Itemnumber: AB1V2H25S200B
https://www.stasto.ro/web/image/product.template/158031/image_1920?unique=32c40fa

knife gate valve with handwheel; wafer type; rising stem; body cast iron EN-GJL-250; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM with copper scraper; screws stainless steel; nominal flange pressure PN10; sealed in both directions; medium temperature -5...+90 °C; DN 200mm; length 60mm; pressure range 0…10bar

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

    This combination does not exist.

    Availability:
    Contact Us

    Share

    No Specifications
    No spare parts are available for this product.
