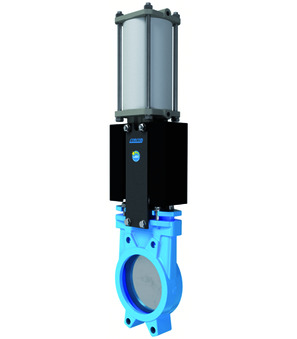

Knife gate valve with double acting actuator AB1N2H5-5N-300-B

Knife gate valve with double acting actuator AB1N2H5-5N-300-B

knife gate valve with double acting actuator series AB1N; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/NBR; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; DN 300mm; length 70mm; pressure range 0...6bar

Intrastat No.: 84818061
Country of origin: Spain Made in Europe
Weight: 72.0 Kg
Short Itemnumber: AB1N2H55N300B
https://www.stasto.ro/web/image/product.template/220840/image_1920?unique=58a0a4c

knife gate valve with double acting actuator series AB1N; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/NBR; screws stainless steel; nominal flange pressure PN10; sealed in both directions; control pressure 5,5...8bar; medium temperature -5...+90°C; DN 300mm; length 70mm; pressure range 0...6bar

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

excl. tax
  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 80 mm
Length 50 mm
Pressure range 0...10 bar
DN 80 mm
Length 50 mm
No spare parts are available for this product.
