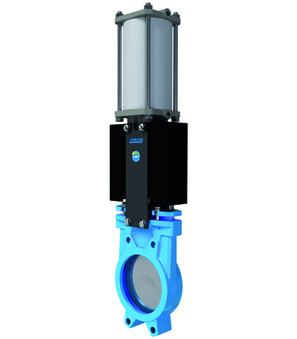

Knife gate valve with double acting actuator AB1N2H2-5-50-B

Knife gate valve with double acting actuator AB1N2H2-5-50-B

Knife gate valve with double acting actuator Series AB1N; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 50mm; Length 40mm; Pressure range 0...10bar

Intrastat No.: 84818061
Country of origin: Spain Made in Europe
Weight: 7.6 Kg
Short Itemnumber: AB1N2H2550B
https://www.stasto.ro/web/image/product.template/54565/image_1920?unique=4357084

Knife gate valve with double acting actuator Series AB1N; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 50mm; Length 40mm; Pressure range 0...10bar

999.999,00 lei 999999.0 RON 999.999,00 lei

Not Available For Sale

excl. tax
  • DN
  • Length
  • Pressure range

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 50 mm
Length 40 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 50 mm
Length 40 mm

AB1N2H2-5-50-B

Documents

1 Documents 2 Languages

German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
PI-PC500-80 x 1.0 Pcs
PI-PC500-80
Piston; Suitable for Pneumatic cylinder For knife gate valve Series A, AB, AD, F, L And U; NBR; Piston diameter 80mm
SK-PC500-80
SK-PC500-80 x 1.0 Pcs
SK-PC500-80
Seal kit; Suitable for Pneumatic cylinder For knife gate valve Series A, AB, AD, F, L And U; NBR; Without piston; Piston diameter 80mm
Spare cylinder PC500-80-50
PC500-80-50 x 1.0 Pcs
Spare cylinder PC500-80-50
Spare cylinder; Suitable for Knife gate valve Series A, AB, AD, F, L And U; DN 50mm; Piston diameter 80mm
SS-AB1N2H2-5-50 x 1.0 Pcs
SS-AB1N2H2-5-50
Seat seal for AB1N2H2-5-50; EPDM
FS-AB1N2H2-5-50 x 1.0 Pcs
FS-AB1N2H2-5-50
Flange seal for AB1N2H2-5-50; EPDM; Scope of supply: 2 Pieces
PS-AB1N2H2-5-50 x 1.0 Pcs
PS-AB1N2H2-5-50
Packing; Suitable for Knife gate valve Series AB; DN 50mm; Material Synthetic PTFE/EPDM
PR-PC500-80-50
PR-PC500-80-50 x 1.0 Pcs
PR-PC500-80-50
Piston-rod; Suitable for Pneumatic cylinder For knife gate valve Series A, AB, AD, F, L And U; DN 50mm; Piston diameter 80mm
