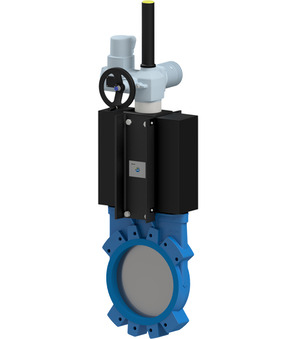

Knife gate valve with electric actuator AB1EM2H2-5-250-B01
Knife gate valve with electric actuator Series AB1EM2H2-5-B; ATEX zone 2 and 22; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 250mm; Length 70mm; Pressure range 0…6bar; Actuator AUMA SAEx07.6
Country of origin: Spain
Weight: 55.0 Kg
Short Itemnumber: AB1EM2H25250B01
knife gate valve with electric actuator series AB1EM2H2-5-B; ATEX zone 2 and 22; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; voltage 400V/3/50Hz; medium temperature -5...+90°C; DN 250mm; length 70mm; pressure range 0…6bar; actuator AUMA SAEx07.6
| Design | ATEX |
