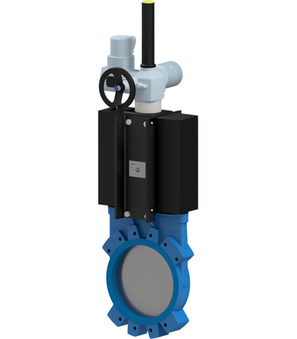

Knife gate valve with electric actuator Series AB1EM2H2-5-B; ATEX zone 2 and 22; Wafer type; Rising stem; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Sealed in both directions; Voltage 400V/3/50Hz; Medium temperature -5...+90°C; DN 150mm; Length 60mm; Pressure range 0…10bar; Actuator AUMA SAEx07.6
Country of origin: Spain
Weight: 32.0 Kg
Short Itemnumber: AB1EM2H25150B01
knife gate valve with electric actuator series AB1EM2H2-5-B; ATEX zone 2 and 22; wafer type; rising stem; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; sealed in both directions; voltage 400V/3/50Hz; medium temperature -5...+90°C; DN 150mm; length 60mm; pressure range 0…10bar; actuator AUMA SAEx07.6
Technical specifications
| Pressure range | 0...10 bar |
|---|---|
| DN | 150 mm |
| Length | 60 mm |
| Design | ATEX |
| Pressure range | 0...10 bar |
| DN | 150 mm |
| Length | 60 mm |
| Design | ATEX |
| Brand | STASTO |
