A2N2H4-5-600-PIB01

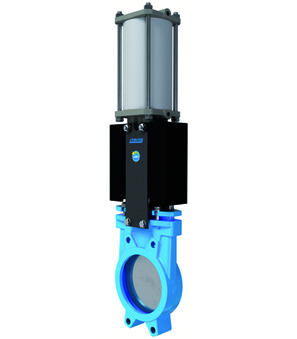

Knife gate valve with double acting actuator; Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed PTFE; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN6; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+250 °C; DN 600mm; Length 110mm; Pressure range 0-4bar; ATEX zone 1 and 21
Intrastat No.: 84818061
Country of origin: Spain
Weight: 340.0 Kg
Short Itemnumber: A2N2H45600PIB01
Country of origin: Spain
Weight: 340.0 Kg
Short Itemnumber: A2N2H45600PIB01
knife gate valve with double acting actuator; wafer type; body cast iron EN-GJL-250; gate AISI 304; soft sealed PTFE; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN6; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+250 °C; DN 600mm; length 110mm; pressure range 0-4bar; ATEX zone 1 and 21
| Design | ATEX |
No spare parts are available for this product.
