A2N2H4-5-200-PIB01

Name: A2N2H4-5-200-PIB01
Brand: STASTO
SKU: A2N2H4-5-200-PIB01
Price: 999999.0 RON
Availability: InStock

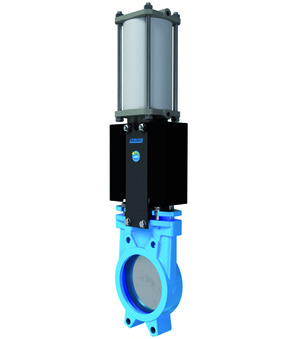

Knife gate valve with double acting actuator; Wafer type; Body Cast iron EN-GJL-250; Gate 1.4301; Soft sealed PTFE; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN6; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+250 °C; DN 200mm; Length 60mm; Pressure range 0-10bar; ATEX zone 1 and 21

Intrastat No.: 84818061
Country of origin: Spain
Weight: 37.0 Kg
Short Itemnumber: A2N2H45200PIB01

knife gate valve with double acting actuator; wafer type; body cast iron EN-GJL-250; gate AISI 304; soft sealed PTFE; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN6; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+250 °C; DN 200mm; length 60mm; pressure range 0-10bar; ATEX zone 1 and 21
