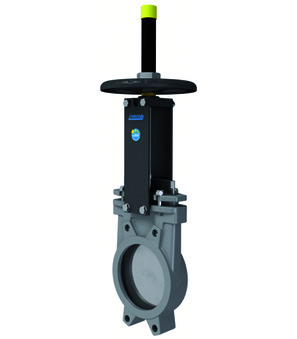

Knife gate valve with handwheel A1V2I4-7-350
Knife gate valve with handwheel Series A1V; Wafer type; Rising stem; Body 1.4408; Gate 1.4401; Soft sealed PTFE; Packing PTFE; Nominal flange pressure PN10; Unidirectional sealed; Medium temperature -10...+180°C; DN 350mm; Length 96mm; Pressure range 0...6bar
Intrastat No.: 84818063
Country of origin: Spain
Short Itemnumber: A1V2I47350
Country of origin: Spain
Short Itemnumber: A1V2I47350
knife gate valve with handwheel series A1V; wafer type; rising stem; body AISI 316; gate AISI 316; soft sealed PTFE; packing PTFE; nominal flange pressure PN10; unidirectional sealed; medium temperature -10...+180°C; DN 350mm; length 96mm; pressure range 0...6bar
| dimension | |
|---|---|
| DN | 350 mm |
| Length | 96 mm |
| pressure | |
| Pressure range | 0...6 bar, 0...6 bar |
| characteristics | |
| Medium temperature | -5...+90 °C |
No spare parts are available for this product.
