Knife gate valve with handwheel Series A1V-PI Store

A1V2I2-5-150-PI-IG5401

Name: A1V2I2-5-150-PI-IG5401
Brand: STASTO
SKU: A1V2I2-5-150-PI-IG5401
Price: 6684.6 RON
Availability: InStock

A1V2I2-5-150-PI

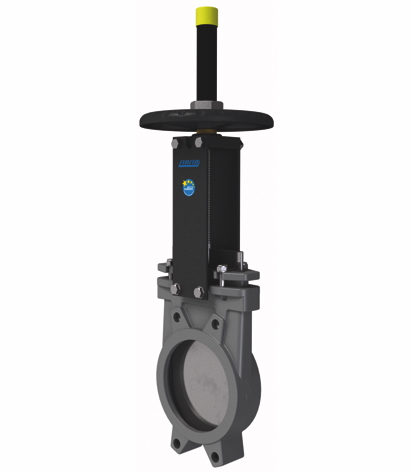

knife gate valve with handwheel series A1V-PI; wafer type; rising stem; housing AISI 316; gate AISI 316; soft sealed EPDM; packing PTFE-synthetic/EPDM; nominal flange pressure PN10; unidirectional sealed; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 150mm; length 60mm; pressure range 0...10bar
IG5401
inductive proximity switch M18; 10...36VDC; NO PNP; IP67; cable 2m; PVC; 3x0,5mm2

Intrastat No.: 84818063
Country of origin: Spain
Weight: 9.88 Kg
Short Itemnumber:A1V2I25150PIIG5401

6.684,60 lei 6684.6 RON 6.684,60 lei

DN
- 150 mm
Length
- 60 mm
Cable length
- -
Function
- -
Voltage
- -
Pressure range
- 0...10 bar
Switch design
- -
Medium temperature
- -5...+90 °C

This combination does not exist.

Availability:

Adaugă în coș

dimension
DN	150 mm
Length	60 mm
pressure
Pressure range	0...10 bar
characteristics
Medium temperature	-5...+90 °C

Data sheets, Instructions, 3D-files and Certificates...

In your language

ZIP

Data Sheets

Data sheet_Knife gate valve_EN.pdf

Knife gate valve with handwheel A1V2I2-5-150-PI

5.571,80 lei

A1V2I2-5-150-PI-MSU03

6.895,70 lei

A1V2I2-5-150-PI-IG5401

6.684,60 lei 6684.6 RON 6.684,60 lei

Not Available For Sale

DN

Length

Cable length

Function

Voltage

Pressure range

Switch design

Medium temperature
