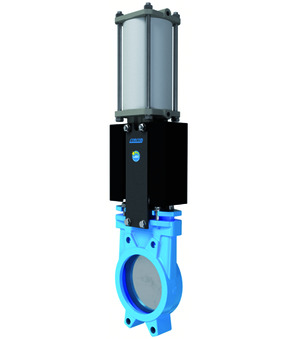

Knife gate valve with double acting actuator Series A1N4H1-5-B; ATEX II 3 G/D; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Metal seal with abrasion protection; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 50mm; Length 46mm; Pressure range 0...10bar
Country of origin: Spain
Weight: 7.8 Kg
Short Itemnumber: A1N4H1550B
knife gate valve with double acting actuator series A1N4H1-5-B; ATEX II 3 G/D; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; metal seal with abrasion protection; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; DN 50mm; length 46mm; pressure range 0...10bar
Technical specifications
| Pressure range | 0...10 bar |
|---|---|
| DN | 50 mm |
| Length | 46 mm |
| Design | ATEX |
| Pressure range | 0...10 bar |
| DN | 50 mm |
| Length | 46 mm |
| Design | ATEX |
