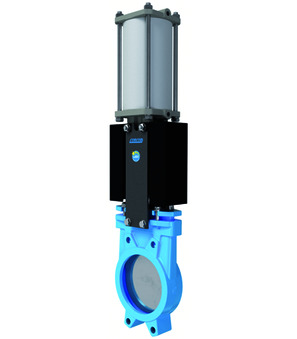

Knife gate valve with double acting actuator Series A1N; Wafer type; Body Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed NBR; Packing PTFE-Synthetic/NBR; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; DN 65mm; Length 40mm; Pressure range 0...10bar; Prepared for 2 inductive limit switches M18
Country of origin: Spain
Weight: 8.4 Kg
Short Itemnumber: A1N2H55N65PIB
knife gate valve with double acting actuator series A1N; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed NBR; packing PTFE-synthetic/NBR; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; DN 65mm; length 40mm; pressure range 0...10bar; prepared for 2 inductive limit switches M18
Technical specifications
| Pressure range | 0...10 bar |
|---|---|
| DN | 65 mm |
| Length | 40 mm |
| Pressure range | 0...10 bar |
| DN | 65 mm |
| Length | 40 mm |
