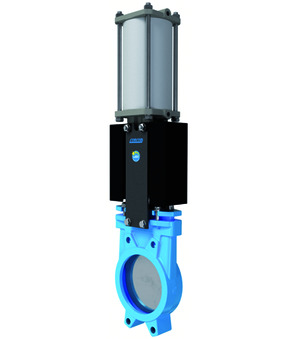

Knife gate valve with double acting actuator A1N2H2-5-50-PIB

Knife gate valve with double acting actuator A1N2H2-5-50-PIB

Knife gate valve with double acting actuator Series A1N-PIB; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 50mm; Length 40mm; Pressure range 0...10bar

Intrastat No.: 84818061
Country of origin: Spain
Weight: 7.55 Kg
Short Itemnumber: A1N2H2550PIB
https://www.stasto.ro/web/image/product.template/70411/image_1920?unique=4c799c4

Knife gate valve with double acting actuator Series A1N-PIB; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 50mm; Length 40mm; Pressure range 0...10bar

2.524,00 lei 2524.0 RON 2.524,00 lei

Not Available For Sale

excl. tax
  • Connection
  • DN
  • Length
  • Cable length
  • Function
  • Actuation
  • Connector size
  • Design
  • Voltage
  • Pressure range
  • Switch design
  • Coil
  • Flow rate
  • Suitable silencer
  • DN-Link

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...10 bar
DN 50 mm
Length 40 mm
Documents
Data sheets, drawings and CAD files
Pressure range 0...10 bar
DN 50 mm
Length 40 mm

A1N2H2-5-50-PIB
