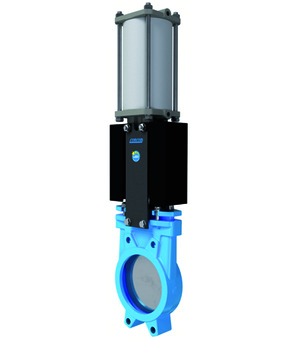

A1N2H2-5-250-PIB-01
Knife gate valve with double acting actuator Series A1N-PIB; Wafer type; Body Cast iron EN-GJL-250/Ductile iron EN-GJS-500-7; Gate 1.4301; Soft sealed EPDM; Packing PTFE-Synthetic/EPDM; Screws Stainless steel; Nominal flange pressure PN10; Unidirectional sealed; Control pressure 5,5...8bar; Medium temperature -5...+90°C; Prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 250mm; Length 70mm; Pressure range 0…8bar; Incl. Flushing holes 5 x 1/4"
Country of origin: Spain
Weight: 58.0 Kg
Short Itemnumber: A1N2H25250PIB01
knife gate valve with double acting actuator series A1N-PIB; wafer type; body cast iron EN-GJL-250/ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; control pressure 5,5...8bar; medium temperature -5...+90°C; prepared for 2 inductive switches MSU03, MSU04, MSU05; DN 250mm; length 70mm; pressure range 0…8bar; incl. flushing holes 5 x 1/4"
| dimension | |
|---|---|
| DN | 250 mm |
| Length | 70 mm |
| pressure | |
| Pressure range | 0...10 bar, 0...8 bar |
