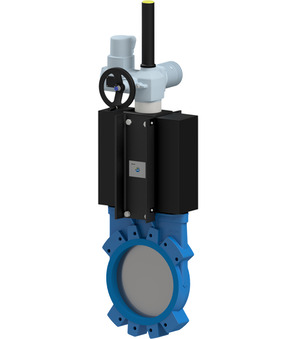

Knife gate valve with electric actuator A1EM2H2-5-600-B-01
knife gate valve with electric actuator series A1EM2H2-5-B; wafer type; rising stem; body ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; voltage 400V/3/50Hz; medium temperature -5...+90°C; DN 600mm; length 110mm; pressure range 0…4bar; actuator SA07.6 (400V/3ph./50Hz); V-shaped plate
Country of origin: Spain
Weight: 0.0 Kg
Short Itemnumber: A1EM2H25600B01
knife gate valve with electric actuator series A1EM2H2-5-B; wafer type; rising stem; body ductile iron EN-GJS-500-7; gate AISI 304; soft sealed EPDM; packing PTFE-synthetic/EPDM; screws stainless steel; nominal flange pressure PN10; unidirectional sealed; voltage 400V/3/50Hz; medium temperature -5...+90°C; DN 600mm; length 110mm; pressure range 0…4bar; actuator SA07.6 (400V/3ph./50Hz); V-shaped plate
