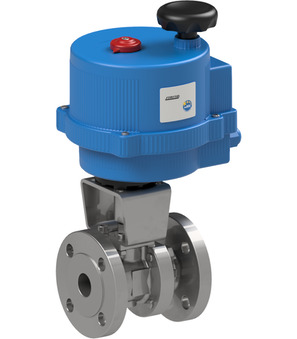

Flanged ball valve with electrical actuator 8E054002-15

Price.

3.525,10 lei
Flanged ball valve with electrical actuator Series 8E054 Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Flanged ball valves - electrically operated
  5. Flanged ball valve with electrical actuator Series 8E054
  6. 8E054002-15
Flanged ball valve with electrical actuator 8E054002-15
Flanged ball valve with electrical actuator 8E007004-150
Flanged ball valve with electrical actuator 8E007004-150
16.903,90 lei
16.903,90 lei
Flanged ball valve with electrical actuator 8E054004-15
Flanged ball valve with electrical actuator 8E054004-15
3.843,90 lei
3.843,90 lei

Flanged ball valve with electrical actuator 8E054002-15

Flanged ball valve with electrical actuator Series 8E054; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; DN 15mm; Pressure range 0-40bar; Flange PN40; Length 115mm; Operating time 10s; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.15 Kg
Short Itemnumber:8E05400215
https://www.stasto.ro/web/image/product.template/76246/image_1920?unique=e5e4a60

Flanged ball valve with electrical actuator Series 8E054; Length According to EN558−1R27; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; DN 15mm; Pressure range 0-40bar; Flange PN40; Length 115mm; Operating time 10s; Voltage 24VAC/DC

3.525,10 lei 3525.1 RON 3.525,10 lei

Not Available For Sale

  • DN
  • Length
  • Flange
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
DN 15 mm
Length 115 mm
Flange PN40
Electrical key figures
Voltage 24VAC/DC
pressure
Pressure range 0...40 bar
characteristics
Actuator VB015L24
Operating time 10 s

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flanged ball valve with electrical actuator Series 8E054_EN.pdf
Download
CAD / 3D
1
CADSTEP_8E05400215.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout - přírubový, s elektropohonem série 8E054_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Flangekugleventil med elektrisk aktuator Serie 8E054_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Flanschkugelhahn mit Elektroantrieb Serie 8E054_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με φλάντζες με ηλεκτρικό ενεργοποιητή Σειρά 8E054_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con bridas con actuador eléctrico Serie 8E054_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Laippakuulaventtiili sähkökäytöllä Sarja 8E054_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique à brides avec actionneur électrique Série 8E054_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Prirubnički kuglasti ventil s električnim pogonom Serija 8E054_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_elektromos hajtóművel működtetett karimás gömbcsap sorozat 8E054_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera flangiata con attuatore elettrico Serie 8E054_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Flenskuleventil med elektrisk aktuator Serie 8E054_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Flenskogelkraan met elektrische aandrijving Serie 8E054_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy kołnierzowy z napędem elektrycznym Seria 8E054_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu flanșă cu actuator electric serie 8E054_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Prirobnična krogelna pipa z električnim pogonom serija 8E054_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa prirubnicom sa električnim aktuatorom serije 8E054_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Flänskulventil med elektriskt ställdon Serie 8E054_SV.pdf
Download
Flanged ball valve 760001-15
760001-15 x 1.0
Flanged ball valve 760001-15
Flanged ball valve Series 760001; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body Zinc plated steel; Ball 1.4301; Seals PTFE/Graphoil/FKM; Medium temperature -10...+160°C; With locking device; Nominal diameter 15mm; Pressure range 0-40bar; Flange PN40; Length 115mm
Add to Cart
Electrical actuator VB015-L-24
VB015-L-24 x 1.0
Electrical actuator VB015-L-24
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP65
Add to Cart
Accessories
