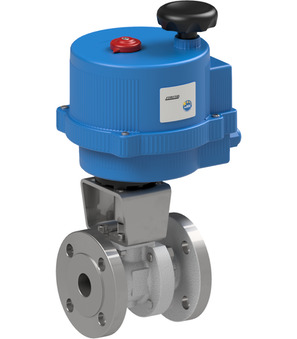

Flanged ball valve with electrical actuator 8E053002-25
Flanged ball valve with electrical actuator 8E053004-20
Flanged ball valve with electrical actuator 8E053004-20
4.555,30 lei
4.555,30 lei
Flanged ball valve with electrical actuator 8E053004-25
Flanged ball valve with electrical actuator 8E053004-25
5.698,70 lei
5.698,70 lei

Flanged ball valve with electrical actuator 8E053002-25

Flanged ball valve with electrical actuator Series 8E053; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; DN 25mm; Pressure range 0-40bar; Flange PN40; Length 125mm; Operating time 8s; Voltage 24VAC/DC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 6.78 Kg
Short Itemnumber:8E05300225
https://www.stasto.ro/web/image/product.template/76227/image_1920?unique=e5e4a60

Flanged ball valve with electrical actuator Series 8E053; Length According to EN558−1R27; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; DN 25mm; Pressure range 0-40bar; Flange PN40; Length 125mm; Operating time 8s; Voltage 24VAC/DC

5.386,10 lei 5386.1 RON 5.386,10 lei

Not Available For Sale

  • DN
  • Length
  • Flange
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us
dimension
DN 25 mm
Length 125 mm
Flange PN40
Electrical key figures
Voltage 24VAC/DC
pressure
Pressure range 0...40 bar
characteristics
Actuator VB030L
Operating time 8 s

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Flanged ball valve with electrical actuator Series 8E053_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_Flanged ball valve with electrical actuator Series 8E053_EN.pdf
Download
CAD / 3D
1
CADSTEP_8E05300225.stp
Download

ZIP
Datové listy
1
Datový list_kulový kohout - přírubový, s elektropohonem série 8E053_CS.pdf
Download
Prohlášení o shodě
1
Prohlášení o shodě_kulový kohout - přírubový, s elektropohonem série 8E053_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Flangekugleventil med elektrisk aktuator Serie 8E053_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Flanschkugelhahn mit Elektroantrieb Serie 8E053_DE.pdf
Download
Konformitätserklärungen
1
Konformitätserklärung_Flanschkugelhahn mit Elektroantrieb Serie 8E053_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σφαιρική βάνα με φλάντζες με ηλεκτρικό ενεργοποιητή Σειρά 8E053_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula de bola con bridas con actuador eléctrico Serie 8E053_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Laippakuulaventtiili sähkökäytöllä Sarja 8E053_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Vanne à boisseau sphérique à brides avec actionneur électrique Série 8E053_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Prirubnički kuglasti ventil s električnim pogonom Serija 8E053_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_elektromos hajtóművel működtetett karimás gömbcsap sorozat 8E053_HU.pdf
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_elektromos hajtóművel működtetett karimás gömbcsap sorozat 8E053_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Valvola a sfera flangiata con attuatore elettrico Serie 8E053_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Flenskuleventil med elektrisk aktuator Serie 8E053_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_Flenskogelkraan met elektrische aandrijving Serie 8E053_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_zawór kulowy kołnierzowy z napędem elektrycznym Seria 8E053_PL.pdf
Download
Deklaracje zgodności
1
Deklaracja zgodności_zawór kulowy kołnierzowy z napędem elektrycznym Seria 8E053_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Robinet cu bilă cu flanșă cu actuator electric serie 8E053_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Prirobnična krogelna pipa z električnim pogonom serija 8E053_SL.pdf
Download
Izjave o skladnosti
1
Izjava o skladnosti_Prirobnična krogelna pipa z električnim pogonom serija 8E053_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_kuglasti ventil sa prirubnicom sa električnim aktuatorom serije 8E053_SRLATIN.pdf
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_kuglasti ventil sa prirubnicom sa električnim aktuatorom serije 8E053_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Flänskulventil med elektriskt ställdon Serie 8E053_SV.pdf
Download
Flanged ball valve 760000-25
760000-25 x 1.0
Flanged ball valve 760000-25
Flanged ball valve Series 760000; ATEX II 2 G/D; Fire-safe; TA-Luft; Length According to EN558−1R27; Full bore; Body, Ball 1.4408; Seals PTFE/Graphoil/FKM; Medium temperature -20...+160°C; With locking device; Nominal diameter 25mm; Pressure range 0-40bar; Flange PN40; Length 125mm
Add to Cart
Electrical actuator VB030-L
VB030-L x 1.0
Electrical actuator VB030-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP67
Add to Cart
