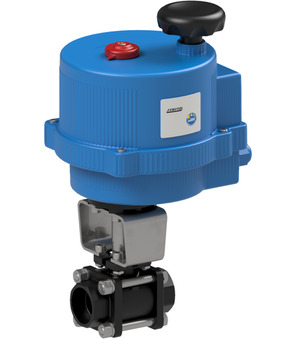

Ball valve with electrical actuator 8E032004-11/4"

Ball valve with electrical actuator 8E032004-11/4"

Ball valve with electrical actuator Series 8E032; Socket weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; DN 32mm; Pressure range 0-25bar; Length 106mm; Operating time 8s; Voltage 100-240VAC

Kugelhahn mit Elektroantrieb Serie 8E032
Intrastat No.: 84818081
Country of origin: Italy
Weight: 4.24 Kg
Short Itemnumber: 8E032004114
https://www.stasto.ro/web/image/product.template/76191/image_1920?unique=8bc9da3

Ball valve with electrical actuator Series 8E032; Socket weld ends; Body Steel; Ball 1.4301; Seals PTFE/FKM; Medium temperature -10...+160°C; DN 32mm; Pressure range 0-25bar; Length 106mm; Operating time 8s; Voltage 100-240VAC

4.145,30 lei 4145.3 RON 4.145,30 lei

Not Available For Sale

excl. tax
  • Socket weld ends
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
DN 32 mm
Length 106 mm
Operating time 8 s
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...25 bar
DN 32 mm
Length 106 mm
Operating time 8 s
Voltage 100-240VAC
Socket weld ends 32 mm

8E032004-11/4"

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Ball valve made of steel 32-0-25-106
714000-32 x 1.0 Pcs
Ball valve made of steel 32-0-25-106
Ball valve made of steel Series 714000; Full bore; Three-parts type; Socket weld ends; Body Steel; Ball 1.4301; Seals PTFE-reinforced/FKM; Medium temperature -10...+160°C; Nominal diameter 32mm; Pressure range 0-25bar; Length 106mm
Electrical actuator VB030-H
VB030-H x 1.0 Pcs
Electrical actuator VB030-H
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 100-240VAC; Protection class IP67
RI3030 x 1.0 Pcs
RI3030
Mounting bracket; F05/F03-F04,11-8
Accessory Products
Ball valve made of steel 32-0-25-106
714000-32
Ball valve made of steel 32-0-25-106
Socket weld ends
32 mm
DN
32 mm
Pressure range
0...25 bar
