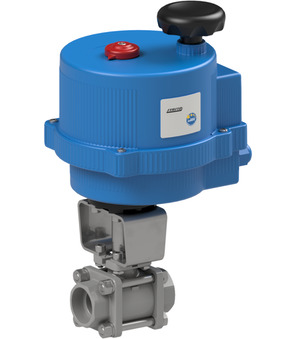

Ball valve with electrical actuator 8E030004-1/2"

Ball valve with electrical actuator 8E030004-1/2"

Ball valve with electrical actuator Series 8E030; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; DN 15mm; Pressure range 0-64bar; Length 65mm; Operating time 10s; Voltage 100-240VAC

Intrastat No.: 84818081
Country of origin: Italy
Weight: 1.983 Kg
Short Itemnumber: 8E03000412
https://www.stasto.ro/web/image/product.template/79121/image_1920?unique=bbc91d7

Ball valve with electrical actuator Series 8E030; Socket weld ends; Body, Ball 1.4401; Seals PTFE-reinforced/FKM; Medium temperature -20...+160°C; DN 15mm; Pressure range 0-64bar; Length 65mm; Operating time 10s; Voltage 100-240VAC

2.816,20 lei 2816.2 RON 2.816,20 lei

Not Available For Sale

  • Socket weld ends
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
Contact Us

Share

dimension
Socket weld ends 15 mm
DN 15 mm
Length 65 mm
Electrical key figures
Voltage 100-240VAC
pressure
Pressure range 0...64 bar
characteristics
Actuator VB015H
Operating time 10 s
