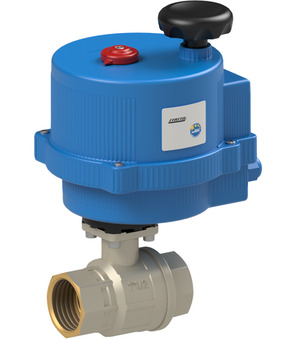

Ball valve with electrical actuator 8E014002-21/2"

Ball valve with electrical actuator 8E014002-21/2"

Ball valve with electrical actuator Series 8E014; Female thread; Body, Ball Brass; Seals PTFE/FKM/EPDM; Medium temperature 0...+100°C; RP 21/2"; DN 65mm; Pressure range 0-25bar; Length 165mm; Operating time 9s; Voltage 24VAC/DC

Kugelhahn mit Elektroantrieb Serie 8E014
Intrastat No.: 84818081
Country of origin: Italy
Weight: 7.3 Kg
Short Itemnumber: 8E014002212
https://www.stasto.ro/web/image/product.template/66423/image_1920?unique=803db60

Ball valve with electrical actuator Series 8E014; Female thread; Body, Ball Brass; Seals PTFE/FKM/EPDM; Medium temperature 0...+100°C; RP 21/2"; DN 65mm; Pressure range 0-25bar; Length 165mm; Operating time 9s; Voltage 24VAC/DC

5.916,00 lei 5916.0 RON 5.916,00 lei

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...25 bar
Female thread RP 2 1/2"
DN 65 mm
Length 165 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...25 bar
Female thread RP 2 1/2"
DN 65 mm
Length 165 mm
Operating time 9 s
Voltage 24VAC/DC

8E014002-21/2"

Documents

3 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Danish / Dansk
ZIP

Data Sheets

1

CAD / 3D

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Greek / Ελληνικά
ZIP

Data Sheets

1

CAD / 3D

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Spanish / Español
ZIP

Data Sheets

1

CAD / 3D

1
Finnish / Suomi
ZIP

Data Sheets

1

CAD / 3D

1
French / Français
ZIP

Data Sheets

1

CAD / 3D

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1

CAD / 3D

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Italian / Italiano
ZIP

Data Sheets

1

CAD / 3D

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1

CAD / 3D

1
Dutch / Nederlands
ZIP

Data Sheets

1

CAD / 3D

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Romanian / română
ZIP

Data Sheets

1

CAD / 3D

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1

CAD / 3D

1
Swedish / Svenska
ZIP

Data Sheets

1

CAD / 3D

1
Ball valve made of brass 2500-21/2"
2500-21/2" x 1.0 Pcs
Ball valve made of brass 2500-21/2"
Ball valve made of brass Series 2500; Bare shaft; Full bore; Female thread; Seal PTFE/FKM/EPDM; Medium temperature -20...+160°C; RP 21/2"; Nominal diameter 65mm; Pressure range 0…25bar; Length 165mm; Flange ISO5211 F07; Square 14mm
Electrical actuator VB060-L
VB060-L x 1.0 Pcs
Electrical actuator VB060-L
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 60Nm; Operating time 9s; Flange ISO5211 F05/F07-Stern 14 mm; Voltage 24VAC/DC; Protection class IP67
