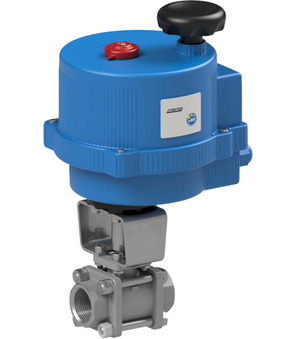

Ball valve with electrical actuator 8E002002-1/2"

Ball valve with electrical actuator 8E002002-1/2"

Ball valve with electrical actuator Series 8E002; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/2"; DN 15mm; Pressure range 0-64bar; Length 65mm; Operating time 10s; Voltage 24VAC/DC

Kugelhahn mit Elektroantrieb Serie 8E002
Kugelhahn mit Elektroantrieb Serie 8E002
Intrastat No.: 84818081
Country of origin: Italy Made in Europe
Weight: 2.013 Kg
Short Itemnumber: 8E00200212
https://www.stasto.ro/web/image/product.template/66464/image_1920?unique=803db60

Ball valve with electrical actuator Series 8E002; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/2"; DN 15mm; Pressure range 0-64bar; Length 65mm; Operating time 10s; Voltage 24VAC/DC

2.497,50 lei 2497.5 RON 2.497,50 lei

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Length
  • Voltage
  • Pressure range
  • Actuator
  • Operating time

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 0...64 bar
Female thread RP 1/2"
DN 15 mm
Length 65 mm
All specifications (6)
Documents
Data sheets, drawings and CAD files
Pressure range 0...64 bar
Female thread RP 1/2"
DN 15 mm
Length 65 mm
Operating time 10 s
Voltage 24VAC/DC

8E002002-1/2"

Documents

2 Documents 18 Languages

Czech / Čeština
ZIP

Data Sheets

1

Declarations of Conformity

1
Danish / Dansk
ZIP

Data Sheets

1
German / Deutsch
ZIP

Data Sheets

1

Declarations of Conformity

1
Greek / Ελληνικά
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1

Declarations of Conformity

1
Spanish / Español
ZIP

Data Sheets

1
Finnish / Suomi
ZIP

Data Sheets

1
French / Français
ZIP

Data Sheets

1
Croatian / hrvatski jezik
ZIP

Data Sheets

1
Hungarian / Magyar
ZIP

Data Sheets

1

Declarations of Conformity

1
Italian / Italiano
ZIP

Data Sheets

1
Norwegian Bokmål / Norsk bokmål
ZIP

Data Sheets

1
Dutch / Nederlands
ZIP

Data Sheets

1
Polish / Język polski
ZIP

Data Sheets

1

Declarations of Conformity

1
Romanian / română
ZIP

Data Sheets

1
Slovenian / slovenščina
ZIP

Data Sheets

1

Declarations of Conformity

1
Serbian (Latin) / srpski
ZIP

Data Sheets

1

Declarations of Conformity

1
Swedish / Svenska
ZIP

Data Sheets

1
Ball valve made of stainless steel 710000-1/2"
710000-1/2" x 1.0 Pcs
Ball valve made of stainless steel 710000-1/2"
Ball valve made of stainless steel Series 710000; Full bore; Three-parts type; Female thread; Body, Ball 1.4401; Seals PTFE/FKM; Medium temperature -20...+160°C; RP 1/2"; Nominal diameter 15mm; Pressure range 0-64bar; Length 65mm
Electrical actuator VB015-L-24
VB015-L-24 x 1.0 Pcs
Electrical actuator VB015-L-24
Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 15Nm; Operating time 10s; Flange ISO5211 F03/F05-Stern 11 mm; Voltage 24VAC/DC; Protection class IP65
RI3790 x 1.0 Pcs
RI3790
Mounting bracket; F03; Bolt 11-7
