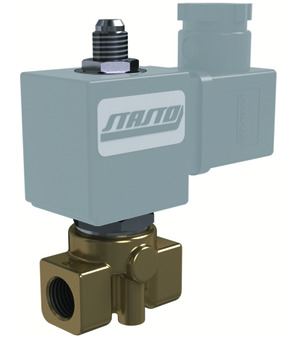

31A3AV25-U-BDA08380DS-C003-32-6
31A3AV25-U
3/2-way solenoid valve series 31A; directly operated; body brass; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; universal function (any pressure connection possible); standard coil BDA; connector size 32mm; G 1/8"; DN 2,5/2,5mm; pressure AC/DC 0-4bar; length 40mm
BDA08380DS
coil type BDA; standard; connector size 32mm; voltage 380V/50-60Hz
C003-32-6
connector; connector size 32mm; Standard; voltage 0...250VAC/DC
Weight: 0.36 Kg
Short Itemnumber:31A3AV25UBDA08380DSC003326
31A3AV25-U
3/2-way solenoid valve series 31A; directly operated; body brass; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; universal function (any pressure connection possible); standard coil BDA; connector size 32mm; G 1/8"; DN 2,5/2,5mm; pressure AC/DC 0-4bar; length 40mm
BDA08380DS
coil type BDA; standard; connector size 32mm; voltage 380V/50-60Hz
C003-32-6
connector; connector size 32mm; Standard; voltage 0...250VAC/DC
This product is no longer available.
| dimension | |
|---|---|
| Female thread | G 1/8" |
| DN | 2,5/2,5 mm |
| Length | 40 mm |
| Designs | |
| Connector size | 32 mm |
| design | |
| Design | Standard |
| Electrical key figures | |
| Voltage | 380V/50-60Hz |
| Voltage type | AC |
| pressure | |
| Pressure AC/DC | 0...4 bar |
| materials | |
| Seal | FKM |
| characteristics | |
| Coil | BDA |
| Medium temperature | -10...+120 °C |
| Approval | CE |
Data sheets, Instructions, 3D-files and Certificates...
