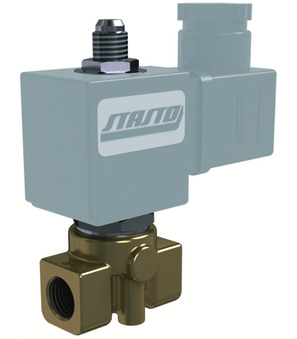

3/2-way solenoid valve Series 31A

3/2-way solenoid valves - directly operated

3/2-way solenoid valve Series 31A

Directly operated; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Universal function (Any pressure connection possible); Standard coil BDA; Connector size 32mm

Data sheets, CAD files and further documents are available with the respective variant.

93Articles
Store guide
Other series

All prices exclude tax.

Grundversion

AvailabilityPriceQuantity
31A3FV15-U
Specifications
Seal
FKM
Medium temperature
-10...+120 °C
G 1/8" 1,5/1,5 mm 40 mm 0...10 bar 388,10 lei
31A3AV25-U
Specifications
Seal
FKM
Medium temperature
-10...+120 °C
G 1/8" 2,5/2,5 mm 40 mm 0...4 bar 334,00 lei
31A2FV15-U
Specifications
Seal
FKM
Medium temperature
-10...+120 °C
G 1/4" 1,5/1,5 mm 40 mm 0...10 bar 388,10 lei
31A2AV25-U
Specifications
Seal
FKM
Medium temperature
-10...+120 °C
G 1/4" 2,5/2,5 mm 40 mm 0...4 bar 334,00 lei

Varianten

AvailabilityPriceQuantity
31A3FV15-U-BDA08012CS-C003-32-6
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
DC
Design
Standard
Approval
CE
12VDC G 1/8" 1,5/1,5 mm 40 mm 519,20 lei
31A3FV15-U-BDA08012CS-C003-31-CV20-6
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
DC
Design
With moulded PVC-cable (2 m)
Approval
CE
12VDC G 1/8" 1,5/1,5 mm 40 mm 570,70 lei
31A3FV15-U-BDA08012CS-C003-32-LV-2
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
DC
Design
With integrated LED-yellow and VDR
Approval
CE
12VDC G 1/8" 1,5/1,5 mm 40 mm 547,20 lei
31A3FV15-U-BDV08024CY-C003-32-6
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
DC
Design
Standard
Approval
UL/CSA/VDE
24VDC G 1/8" 1,5/1,5 mm 40 mm 552,30 lei
31A3FV15-U-BDA08024CS-C003-32-6
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
DC
Design
Standard
Approval
CE
24VDC G 1/8" 1,5/1,5 mm 40 mm 519,20 lei
31A3FV15-U-BDA08024CS-C003-31-CV20-6
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
DC
Design
With moulded PVC-cable (2 m)
Approval
CE
24VDC G 1/8" 1,5/1,5 mm 40 mm 570,70 lei
31A3FV15-U-BDA08024CS-C003-32-LV-2
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
DC
Design
With integrated LED-yellow and VDR
Approval
CE
24VDC G 1/8" 1,5/1,5 mm 40 mm 547,20 lei
31A3FV15-U-BDA08024DS-C003-32-6
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
Standard
Approval
CE
24V/50-60Hz G 1/8" 1,5/1,5 mm 40 mm 519,20 lei
31A3FV15-U-BDA08024DS-C003-31-CV20-6
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
With moulded PVC-cable (2 m)
Approval
CE
24V/50-60Hz G 1/8" 1,5/1,5 mm 40 mm 570,70 lei
31A3FV15-U-BDA08024DS-C003-32-LV-2
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
With integrated LED-yellow and VDR
Approval
CE
24V/50-60Hz G 1/8" 1,5/1,5 mm 40 mm 547,20 lei
31A3FV15-U-BDA08042AS-C003-32-6
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
Standard
Approval
CE
42V/50Hz G 1/8" 1,5/1,5 mm 40 mm 539,10 lei
31A3FV15-U-BDA08042AS-C003-31-CV20-6
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
With moulded PVC-cable (2 m)
Approval
CE
42V/50Hz G 1/8" 1,5/1,5 mm 40 mm 590,60 lei
31A3FV15-U-BDA08048AS-C003-32-6
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
Standard
Approval
CE
48V/50Hz G 1/8" 1,5/1,5 mm 40 mm 521,20 lei
31A3FV15-U-BDA08048AS-C003-31-CV20-6
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
With moulded PVC-cable (2 m)
Approval
CE
48V/50Hz G 1/8" 1,5/1,5 mm 40 mm 572,70 lei
31A3FV15-U-BDA08110CS-C003-32-6
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
DC
Design
Standard
Approval
CE
110VDC G 1/8" 1,5/1,5 mm 40 mm 519,20 lei
31A3FV15-U-BDA08110CS-C003-31-CV20-6
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
DC
Design
With moulded PVC-cable (2 m)
Approval
CE
110VDC G 1/8" 1,5/1,5 mm 40 mm 570,70 lei
31A3FV15-U-BDA08110CS-C003-32-LV-1
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
DC
Design
With integrated LED-yellow and VDR
Approval
CE
110VDC G 1/8" 1,5/1,5 mm 40 mm 546,70 lei
31A3FV15-U-BDA08110DS-C003-32-6
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
Standard
Approval
CE
110V/50-60Hz G 1/8" 1,5/1,5 mm 40 mm 519,20 lei
31A3FV15-U-BDA08110DS-C003-31-CV20-6
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
With moulded PVC-cable (2 m)
Approval
CE
110V/50-60Hz G 1/8" 1,5/1,5 mm 40 mm 570,70 lei
31A3FV15-U-BDA08110DS-C003-32-LV-1
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
With integrated LED-yellow and VDR
Approval
CE
110V/50-60Hz G 1/8" 1,5/1,5 mm 40 mm 546,70 lei
31A3FV15-U-BDA08223DS-C003-32-6
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
Standard
Approval
CE
220-230V/50-60Hz G 1/8" 1,5/1,5 mm 40 mm 519,20 lei
31A3FV15-U-BDA08223DS-C003-31-CV20-6
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
With moulded PVC-cable (2 m)
Approval
CE
220-230V/50-60Hz G 1/8" 1,5/1,5 mm 40 mm 570,70 lei
31A3FV15-U-BDA08223DS-C003-32-LV-1
Specifications
Pressure AC/DC
0...10 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
With integrated LED-yellow and VDR
Approval
CE
220-230V/50-60Hz G 1/8" 1,5/1,5 mm 40 mm 546,70 lei
31A3AV25-U-BDA08012CS-C003-32-6
Specifications
Pressure AC/DC
0...4 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
DC
Design
Standard
Approval
CE
12VDC G 1/8" 2,5/2,5 mm 40 mm 465,10 lei
31A3AV25-U-BDA08012CS-C003-31-CV20-6
Specifications
Pressure AC/DC
0...4 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
DC
Design
With moulded PVC-cable (2 m)
Approval
CE
12VDC G 1/8" 2,5/2,5 mm 40 mm 516,60 lei
31A3AV25-U-BDA08012CS-C003-32-LV-2
Specifications
Pressure AC/DC
0...4 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
DC
Design
With integrated LED-yellow and VDR
Approval
CE
12VDC G 1/8" 2,5/2,5 mm 40 mm 493,20 lei
31A3AV25-U-BDA08024CS-C003-32-6
Specifications
Pressure AC/DC
0...4 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
DC
Design
Standard
Approval
CE
24VDC G 1/8" 2,5/2,5 mm 40 mm 465,10 lei
31A3AV25-U-BDA08024CS-C003-31-CV20-6
Specifications
Pressure AC/DC
0...4 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
DC
Design
With moulded PVC-cable (2 m)
Approval
CE
24VDC G 1/8" 2,5/2,5 mm 40 mm 516,60 lei
31A3AV25-U-BDA08024CS-C003-32-LV-2
Specifications
Pressure AC/DC
0...4 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
DC
Design
With integrated LED-yellow and VDR
Approval
CE
24VDC G 1/8" 2,5/2,5 mm 40 mm 493,20 lei
31A3AV25-U-BDA08024DS-C003-32-6
Specifications
Pressure AC/DC
0...4 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
Standard
Approval
CE
24V/50-60Hz G 1/8" 2,5/2,5 mm 40 mm 465,10 lei
31A3AV25-U-BDA08024DS-C003-31-CV20-6
Specifications
Pressure AC/DC
0...4 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
With moulded PVC-cable (2 m)
Approval
CE
24V/50-60Hz G 1/8" 2,5/2,5 mm 40 mm 516,60 lei
31A3AV25-U-BDA08024DS-C003-32-LV-2
Specifications
Pressure AC/DC
0...4 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
With integrated LED-yellow and VDR
Approval
CE
24V/50-60Hz G 1/8" 2,5/2,5 mm 40 mm 493,20 lei
31A3AV25-U-BDA08042AS-C003-32-6
Specifications
Pressure AC/DC
0...4 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
Standard
Approval
CE
42V/50Hz G 1/8" 2,5/2,5 mm 40 mm 485,00 lei
31A3AV25-U-BDA08042AS-C003-31-CV20-6
Specifications
Pressure AC/DC
0...4 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
With moulded PVC-cable (2 m)
Approval
CE
42V/50Hz G 1/8" 2,5/2,5 mm 40 mm 536,50 lei
31A3AV25-U-BDA08048AS-C003-32-6
Specifications
Pressure AC/DC
0...4 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
Standard
Approval
CE
48V/50Hz G 1/8" 2,5/2,5 mm 40 mm 467,20 lei
31A3AV25-U-BDA08048AS-C003-31-CV20-6
Specifications
Pressure AC/DC
0...4 bar
Seal
FKM
Medium temperature
-10...+120 °C
Voltage type
AC
Design
With moulded PVC-cable (2 m)
Approval
CE
48V/50Hz G 1/8" 2,5/2,5 mm 40 mm 518,70 lei
