2/2-way solenoid valve 21A8KV45

Price.

295,30 lei
2/2-way solenoid valve Series 21A.K Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - directly operated
  5. 2/2-way solenoid valve Series 21A.K
  6. 21A8KV45
2/2-way solenoid valve 21A8KV45
21A5KV45-BDA08223DS-C003-32-LV-1
21A5KV45-BDA08223DS-C003-32-LV-1
430,40 lei
430,40 lei
21A8KV45-GDV14024CY-C003-32-LV-2
21A8KV45-GDV14024CY-C003-32-LV-2
639,50 lei
639,50 lei

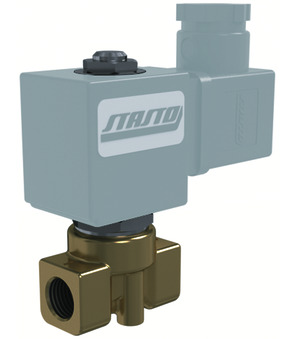

2/2-way solenoid valve 21A8KV45

2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 4,5mm; Pressure AC 0...5bar; Pressure DC 0...2bar; Length 58mm

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.17 Kg
Short Itemnumber:21A8KV45
https://www.stasto.ro/web/image/product.template/28017/image_1920?unique=29ba511

2/2-way solenoid valve Series 21A; Directly operated; NC; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Standard coil BDA; Connector size 32mm; G 1/2"; DN 4,5mm; Pressure AC 0...5bar; Pressure DC 0...2bar; Length 58mm

295,30 lei 295.3 RON 295,30 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Connector size
  • Type of coil 2
  • Design
  • Voltage
  • Voltage type
  • Pressure AC
  • Pressure DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/2"
DN 4,5 mm
Length 58 mm
Designs
Connector size 32 mm
pressure
Pressure AC 0...5 bar
Pressure DC 0...2 bar
materials
Seal FKM
characteristics
Coil BDA
Medium temperature -10...+120 °C
