21A2ZV20-R453382-B

Price.

460,50 lei
2/2-way solenoid valve Series 21A.Z Store
  1. Products
  2. Armatures
  3. Solenoid valves for liquids and gases
  4. 2/2-way solenoid valves - directly operated
  5. 2/2-way solenoid valve Series 21A.Z
  6. 21A2ZV20-R453382-B
21A2ZV20-R453382-B
21A3ZV30-BDA08223DS-C003-32-LV-1
21A3ZV30-BDA08223DS-C003-32-LV-1
553,90 lei
553,90 lei
21A2ZV20-BDA08012CS-C003-32-6
21A2ZV20-BDA08012CS-C003-32-6
526,30 lei
526,30 lei

21A2ZV20-R453382-B

21A2ZV20

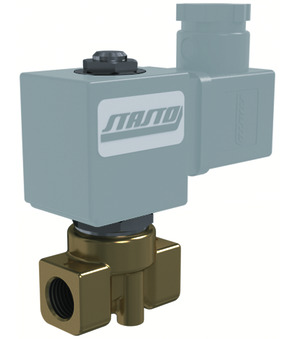

2/2-way solenoid valve Series 21A; Directly operated; NO; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Connector size 32mm; G 1/4"; DN 2mm; Pressure AC/DC 0-20bar; Length 40mm; Standard coil BDA
R453382-B
Sealing kit; Coil BDV

Intrastat No.: 84818099
Country of origin: Italy
Weight: 0.231 Kg
Short Itemnumber:21A2ZV20R453382B
https://www.stasto.ro/web/image/product.template/213336/image_1920?unique=0e0953a

21A2ZV20
2/2-way solenoid valve series 21A; directly operated; NO; body brass; tube stainless steel one-piece; seal FKM; medium temperature -10...+120°C; connector size 32mm; G 1/4"; DN 2mm; pressure AC/DC 0-20bar; length 40mm; standard coil BDA
R453382-B
sealing kit; coil BDV

460,50 lei 460.5 RON 460,50 lei

Not Available For Sale

  • Female thread
  • DN
  • Length
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Pressure AC/DC
  • Seal
  • Coil
  • Medium temperature
  • Approval

This combination does not exist.

Availability:
Contact Us
dimension
Female thread G 1/4"
DN 2,0 mm
Length 40 mm
Designs
Connector size 32 mm
pressure
Pressure AC/DC 0...20 bar
materials
Seal FKM
characteristics
Coil BDA
Medium temperature -10...+120 °C

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
2
Data sheet_2/2-way solenoid valve Series 21A.Z_EN.pdf
Download
Data sheet_R453382-B_EN.pdf
R453382-B
Download
Assembly and Operating Instructions
1
Assembly and operating instructions_2/2-way solenoid valves - directly operated_EN.pdf
Download
Declarations of Conformity
1
Declaration of conformity_2/2-way solenoid valves - directly operated_EN.pdf
Download
CAD / 3D
1
CADSTEP_21A2ZV20.stp
21A2ZV20
Download

ZIP
Datové listy
1
Datový list_2/2 cestný elektromagnetický ventil série 21A.Z_CS.pdf
Download
Montážní a provozní návody
1
Návod k montáži a obsluze_2/2-cestné elektromagnetické ventily - přímo řízené_CS.pdf
Download
Prohlášení o shodě
1
Prohlášení o shodě_2/2-cestné elektromagnetické ventily - přímo řízené_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_2/2-vejs magnetventil Serie 21A.Z_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_2/2-Wege-Magnetventil Serie 21A.Z_DE.pdf
Download
Montage- und Betriebsanleitungen
1
Montage- und Betriebsanleitung_2/2-Wege Magnetventile - direktgesteuert_DE.pdf
Download
Konformitätserklärungen
1
Konformitätserklärung_2/2-Wege Magnetventile - direktgesteuert_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Ηλεκτρομαγνητική βαλβίδα 2/2 οδών Σειρά 21A.Z_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Válvula solenoide de 2/2 vías Serie 21A.Z_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_2/2-tie magneettiventtiili Sarja 21A.Z_FI.pdf
Download

ZIP
Data Sheets
1
Fiche technique_Électrovanne 2/2 voies Série 21A.Z_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_2/2-putni elektromagnetski ventil Serija 21A.Z_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_2/2-es mágnesszelep sorozat 21A.Z_HU.pdf
Download
Szerelési és kezelési útmutatók
1
Összeszerelési és kezelési útmutató_2/2-es elektromos vezérlésű útszelepek - közvetlen vezérléssel_HU.pdf
Download
Megfelelőségi nyilatkozatok
1
Megfelelőségi nyilatkozat_2/2-es elektromos vezérlésű útszelepek - közvetlen vezérléssel_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Elettrovalvola 2/2 vie Serie 21A.Z_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_2/2-veis magnetventil Serie 21A.Z_NB_NO.pdf
Download

ZIP
Data Sheets
1
Datasheet_2/2-weg magneetventiel Serie 21A.Z_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_2/2-drogowy zawór elektromagnetyczny Seria 21A.Z_PL.pdf
Download
Instrukcje montażu i obsługi
1
Instrukcja montażu i obsługi_2/2-drogowe zawory elektromagnetyczne - sterowanie bezpośrednie_PL.pdf
Download
Deklaracje zgodności
1
Deklaracja zgodności_2/2-drogowe zawory elektromagnetyczne - sterowanie bezpośrednie_PL.pdf
Download

ZIP
Data Sheets
1
Fișă de date_Supapă electromagnetică cu 2/2 căi serie 21A.Z_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_2/2-potni magnetni ventil serija 21A.Z_SL.pdf
Download
Navodila za montažo in uporabo
1
Navodila za montažo in uporabo_2/2-potni magnetni ventili - direktno krmiljeni_SL.pdf
Download
Izjave o skladnosti
1
Izjava o skladnosti_2/2-potni magnetni ventili - direktno krmiljeni_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_2/2-kraki elektromagnetni ventil serije 21A.Z_SRLATIN.pdf
Download
Assembly and Operating Instructions
1
Uputstvo za montažu i upotrebu_2/2 elektromagnetni ventili - direktno upravljani_SRLATIN.pdf
Download
Declarations of Conformity
1
Deklaracija o usklađenosti_2/2 elektromagnetni ventili - direktno upravljani_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_2/2-vägs magnetventil Serie 21A.Z_SV.pdf
Download
2/2-way solenoid valve 21A2ZV20
21A2ZV20 x 1.0
2/2-way solenoid valve 21A2ZV20
2/2-way solenoid valve Series 21A; Directly operated; NO; Body Brass; Tube Stainless steel One-piece; Seal FKM; Medium temperature -10...+120°C; Connector size 32mm; G 1/4"; DN 2mm; Pressure AC/DC 0-20bar; Length 40mm; Standard coil BDA
Add to Cart
