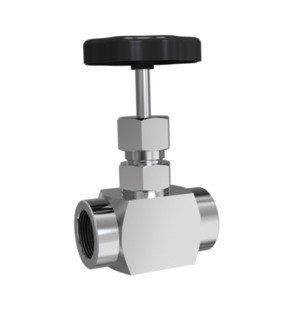

Needle valve 110VA-3/4"-S
Needle valve Series 110VA; Body Stainless steel 1.4571; Stem seal PTFE; Medium temperature -50...+60°C; Free of oil and grease for oxygen; G 3/4"; DN 9mm; Pressure range 0-200bar Length 75mm; Material handwheel Polyamid
Intrastat No.: 84818073
Country of origin: Germany
Weight: 2.19 Kg
Short Itemnumber: 110VA34S
Country of origin: Germany
Weight: 2.19 Kg
Short Itemnumber: 110VA34S
needle valve series 110VA; body stainless steel AISI 316Ti; stem seal PTFE; medium temperature -50...+60°C; free of oil and grease for oxygen; G 3/4"; DN 9mm; pressure range 0-200bar length 75mm; material handwheel Polyamid
| dimension | |
|---|---|
| Female thread | G 3/4" |
| DN | 8 mm |
| Length | 75 mm |
| pressure | |
| Pressure range | 0...200 bar |
| materials | |
| Material handwheel | Polyamide |
No spare parts are available for this product.
