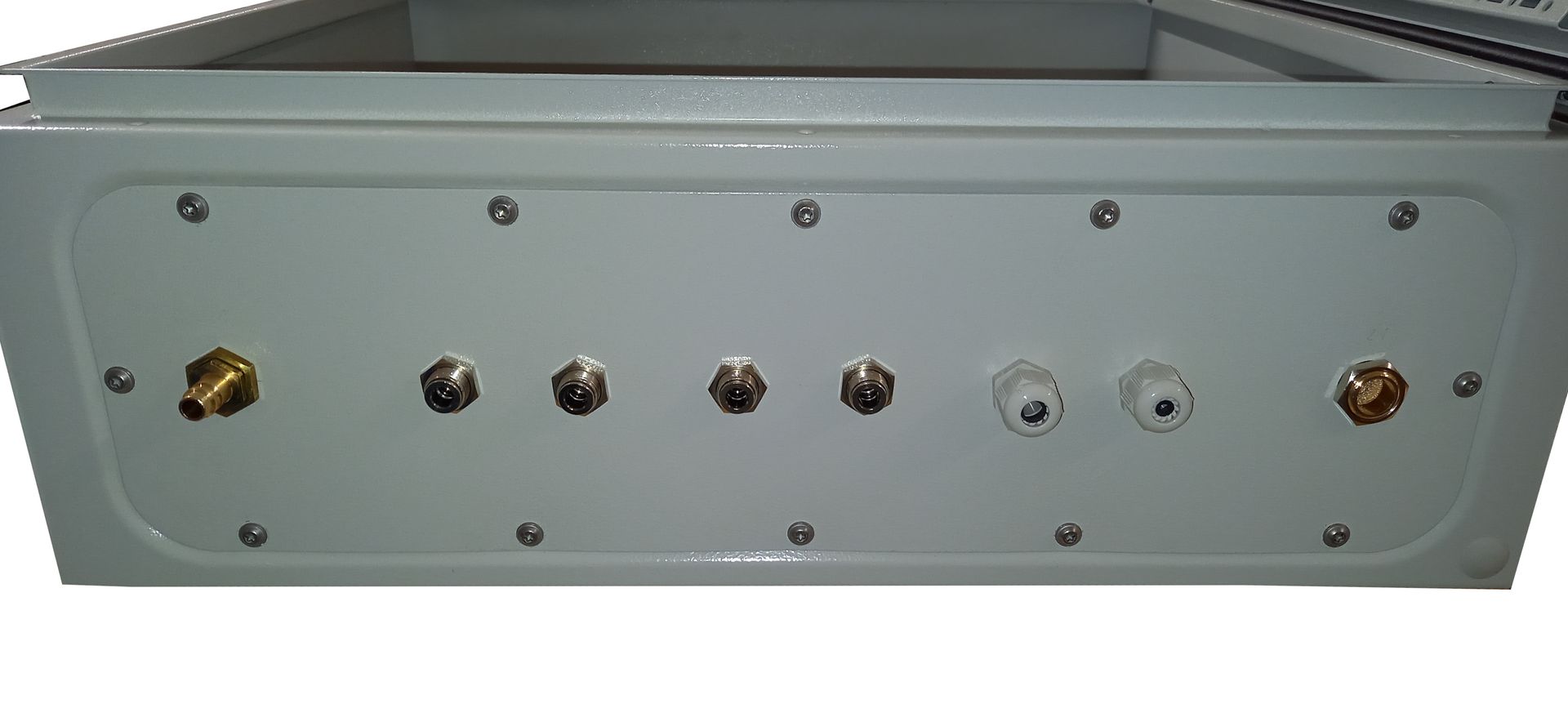

STASTO Combination Control unit
STASTO Combination
Fully assembled and tested
Consists of:
Control unit 600x600x210mm;
2x 5/2-way solenoid valve G1/4", 24VDC;
1x 3/2-way solenoid valve NC; G1/4", 24VDC;
2x Pressure regulator G3/8"; 0,5...12bar;
1x Pressure switch 4...9bar;
4x Bulkhead fitting 8mm;
2x PG fitting;
Inlet Coupling plug 7,2mm
Intrastat No.: 84812090
Country of origin: Italy
Weight: 25.674 Kg
Short Itemnumber: WEC001
Country of origin: Italy
Weight: 25.674 Kg
Short Itemnumber: WEC001
STASTO combination
fully assembled and tested
consists of:
control unit 600x600x210mm;
2x 5/2-way solenoid valve G1/4", 24VDC;
1x 3/2-way solenoid valve NC; G1/4", 24VDC;
2x pressure regulator G3/8"; 0,5...12bar;
1x pressure switch 4...9bar;
4x bulkhead fitting 8mm;
2x PG fitting;
inlet coupling plug 7,2mm
No Specifications
E52W1SM14
x 2.0
5/2-way valve E52W1SM14
5/2-way valve Series E5.; Pilot-operated; Actuation Electrical/spring; Standard coil C001; Connector size 22mm; Connection 1/4"; Nominal diameter 8mm; Pressure range 2,5-10bar; Flow rate 1080Nl/min
E32W1S6M4
x 1.0
3/2-way valve E32W1S6M4
3/2-way valve Series E3.; Pilot-operated; Actuation Electrical/spring; Standard coil C001; Connector size 22mm; Connection 1/4"; Nominal diameter 8mm; Function NC; Pressure range 2,5-10bar; Flow rate 1080Nl/min
R-38-12-R
x 2.0
Pressure regulator R-38-12-R
Pressure regulator Series RE01/R; Relieving; Connection 3/8"; Flow at 6,3bar/Δp=1bar 2100Nl/min; Pressure range 0,5-12bar; Max. inlet pressure 12,5bar
901.92
x 1.0
Pressure switch 901.92
Pressure switch Series 901.9; Change-over contact; Diaphragm NBR; Setting scale; 250VAC/6A; 24VDC/2A; Male thread 1/4"; Application: Air, Water, Neutral oils; Protection class See Protection cap (Max. IP65); Range of adjustment 4...9bar; Overpressure protection 25bar; Hysteresis range 0,5-2bar
PC-PVS01-01
x 1.0
Accessories Schutzkappe aus Kunststoff für Schutzart IP44
Accessories; Suitable for Series 901; Schutzkappe aus Kunststoff für Schutzart IP44
PI27-08-N
x 4.0
Bulkhead fitting PI27-08-N
Bulkhead fitting Series PI27; Nickel plated brass; Diameter 8mm
PI29-08-N
x 1.0
T-connector PI29-08-N
T-connector Series PI29; Nickel plated brass; Diameter 8mm; Diameter 8mm
PI16-08-38-N-0-360
x 8.0
Swivel male elbow PI16-08-38-N-0-360
Swivel male elbow Series PI16-360; Nickel plated brass; Cylindrical thread; Diameter 8mm; Thread 3/8"
SLN-M14-RB
x 5.0
Silencer SLN-M14-RB
Silencer Series SLN-RB; Sinterbronze; Thread Steel copper plated; Operating pressure Max. 16bar; Connection 1/4"; Length 28mm
SLN-M12-BB
x 1.0
Silencer SLN-M12-BB
Silencer Series SLN-BB; Sinterbronze; Thread Brass; Operating pressure Max. 16bar; Connection 1/2"; Length 45mm
C0P72-M38-B-C
x 1.0
Coupling plug DN 7,2 C0P72-M38-B-C
Coupling plug DN 7,2; Male thread; Brass; Pressure -0,87...35bar; Temperature Max. 100°C; Thread 3/8"
CP-8/6-BK-1
x 3.0
Plastic hose CP-8/6-BK-1
Plastic hose Series CP; Material Co-polyurethane; Multiplier for operating pressure 30°C = 0,87 / 80°C = 0,40; Vacuum -0,87bar; Temperature range -40...100°C; Outside diameter 8mm; Inside diameter 6mm; Operating pressure at 23°C 15bar; Colour schwarz
TH24C-14-N
x 1.0
T-adapter Female thread/Female thread/Male thread TH24C-14-N
T-adapter Female thread/Female thread/Male thread Series TH24C; Nickel plated brass; Conical thread; Thread 1/4"
PI19-08-14-N-0-360
x 4.0
Swivel male elbow PI19-08-14-N-0-360
Swivel male elbow Series PI19-360; Nickel plated brass; Cylindrical thread; Diameter 8mm; Thread 1/4"
TH28-12-38-B
x 1.0
Bulkhead TH28-12-38-B
Bulkhead Series TH28; Brass; Cylindrical thread; Thread 1 1/2"; Thread 2 3/8"
PI12-08-38-N-0
x 1.0
Straight male stud fitting PI12-08-38-N-0
Straight male stud fitting Series PI12; Nickel plated brass; Cylindrical thread; Diameter 8mm; Thread 3/8"
