Electrical actuator VB350-H-P0S

Price.

6.730,50 lei
Electrical actuator Series VB Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Other materiales - A03
  5. Electrical actuator Series VB
  6. VB350-H-P0S

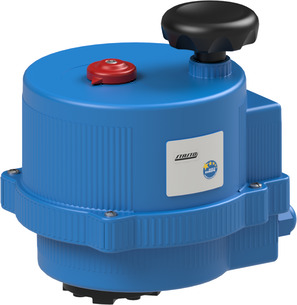

Electrical actuator VB350-H-P0S
  2. STASTO Store
  3. Electrical actuator VB350-H-P0S
Electrical actuator VB350-L-P0S
Electrical actuator VB350-L-P0S
6.220,50 lei
6.220,50 lei
Electrical actuator VB270-H-P0T
Electrical actuator VB270-H-P0T
5.136,20 lei
5.136,20 lei

Electrical actuator VB350-H-P0S

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 350Nm; Operating time 50s; Flange ISO5211 F07/F10-Stern 22 mm; Voltage 100-240VAC; Protection class IP67

Intrastat No.: 85013100
Country of origin: Italy
Weight: 5.9 Kg
Short Itemnumber:VB350HP0S
https://www.stasto.ro/web/image/product.template/88606/image_1920?unique=0ec923a

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Incl. Positioner 4-20mA/0-10V; Torque 350Nm; Operating time 50s; Flange ISO5211 F07/F10-Stern 22 mm; Voltage 100-240VAC; Protection class IP67

6.730,50 lei 6730.5 RON 6.730,50 lei

Not Available For Sale

  • Flange ISO5211
  • Voltage
  • Torque
  • Operating time
  • Protection class

This combination does not exist.

Availability:
Contact Us
Designs
Flange ISO5211 F07/F10-star 22mm
Electrical key figures
Voltage 100-240VAC
characteristics
Torque 350 Nm
Operating time 50 s
Others
Protection class IP67

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
CAD / 3D
1
CADSTEP_VB350HP0S.stp
Download
No spare parts are available for this product.
Accessories
Designs
Flange ISO5211 F07/F10-star 22mm
Electrical key figures
Voltage 100-240VAC
characteristics
Torque 350 Nm
Operating time 50 s
Others
Protection class IP67

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
CAD / 3D
1
CADSTEP_VB350HP0S.stp
Download
No spare parts are available for this product.
