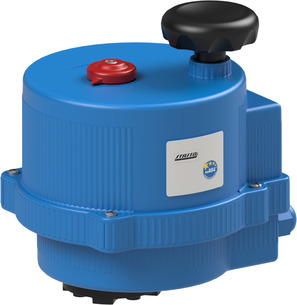

Electrical actuator VB270-H-AKKU
Electrical actuator Series VB-AKKU; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Protection class IP67; Including Accumulator for safety position; Torque 270Nm; Operating time 50s; Flange ISO5211 F07/F10-Stern 22 mm; Voltage 100…240VAC; Function NC
Country of origin: Italy
Weight: 7.0 Kg
Short Itemnumber: VB270HAKKU
electrical actuator series VB-AKKU; suitable for valves with 90° operation; for a maximum of 100 operations a day; limit switch-off is wired; 2 potential-free contacts for end position feedback; incl. manual emergency override; protection class IP67; including accumulator for safety position; torque 270Nm; operating time 50s; flange ISO5211 F07/F10-Stern 22 mm; voltage 100…240VAC; function NC
| function | |
|---|---|
| Function | NC |
| Designs | |
| Flange ISO5211 | F07/F10-star 22mm |
| Electrical key figures | |
| Voltage | 100-240VAC |
| characteristics | |
| Torque | 270 Nm |
| Operating time | 50 s |
