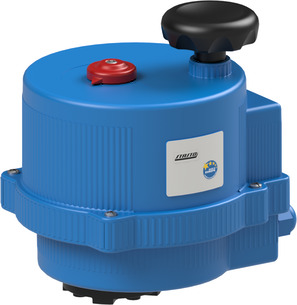

Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-star 11mm; Voltage 12VAC/DC; Protection class IP67
Country of origin: Italy
Weight: 2.3 Kg
Short Itemnumber: VB030L12
Electrical actuator; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-star 11mm; Voltage 12VAC/DC; Protection class IP67
| Brand | STASTO |
VB030-L-12
Documents
Language-independent
CAD / 3D
1-
STP
CADSTEP · VB030L12
CAD-STEP 6,8 MB Updated 27/09/2026
