Electrical actuator VB030-0F8-Q14

Price.

2.770,80 lei
Electrical actuator Series VB Store
  1. Products
  2. Armatures
  3. Ball valves - automatically operated
  4. Spare parts
  5. Electrical actuator Series VB
  6. VB030-0F8-Q14
Electrical actuator VB030-0F8-Q14
Electrical actuator VB030-0E8-Q14
Electrical actuator VB030-0E8-Q14
999.999,00 lei
999.999,00 lei
Electrical actuator VB060-0E9-Q17
Electrical actuator VB060-0E9-Q17
2.891,70 lei
2.891,70 lei

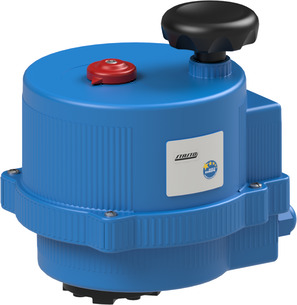

Electrical actuator VB030-0F8-Q14

Electrical actuator Series VB; Suitable for Valves with 90° operation; For a maximum of 100 operations a day; Limit switch-off is wired; 2 potential-free contacts for end position feedback; Incl. manual emergency override; Torque 30Nm; Operating time 8s; Flange ISO5211 F03/F05-Stern 14mm; Voltage 100-240VAC; Protection class IP67

Intrastat No.: 85013100
Country of origin: Italy
Weight: 2.16 Kg
Short Itemnumber:VB0300F8Q14
https://www.stasto.ro/web/image/product.template/137022/image_1920?unique=2a86bbc

electrical actuator series VB; suitable for valves with 90° operation; for a maximum of 100 operations a day; limit switch-off is wired; 2 potential-free contacts for end position feedback; incl. manual emergency override; torque 30Nm; operating time 8s; flange ISO5211 F03/F05-Stern 14mm; voltage 100-240VAC; protection class IP67

2.770,80 lei 2770.8 RON 2.770,80 lei

Not Available For Sale

  • Flange ISO5211
  • Voltage
  • Actuator
  • Torque
  • Operating time
  • Protection class

This combination does not exist.

Availability:
Contact Us
Designs
Flange ISO5211 F03/F05-star 14mm
Electrical key figures
Voltage 100-240VAC
characteristics
Actuator VB030H
Torque 30 Nm
Operating time 8 s
Others
Protection class IP67
