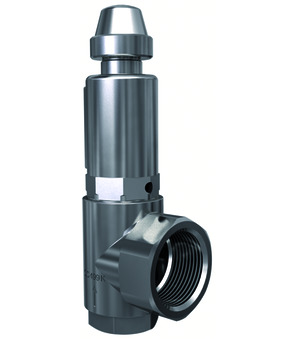

Safety valve Series SV59; With lifting lever; With metal bellow; Body Stainless steel AISI 316L; Seal EPDM; Application: Liquids; Medium temperature -40...+170°C; Inlet Female thread G 3/4"; Outlet Female thread G 11/4"; DN 18mm; Set pressure 8/800; Unit bar/kPa; Incl. TÜV-Inspection certificate EN-10204-3.2; Certificate ASME Boiler and Pressure Vessel Code, Section VIII.Div 1 (ASME) For liquids; Inspection certificate EN-10204-3.1; For material; ATEX-certificate; EAC-Certificate; With valve pass And Laser marking
Country of origin: Germany
Weight: 1.37 Kg
Short Itemnumber: SV5934W1884T0
safety valve series SV59; with lifting lever; with metal bellow; body stainless steel AISI 316L; seal EPDM; application: liquids; medium temperature -40...+170°C; inlet female thread G 3/4"; outlet female thread G 11/4"; DN 18mm; set pressure 8/800; unit bar/kPa; incl. TÜV-inspection certificate EN-10204-3.2; certificate ASME Boiler and Pressure Vessel Code, Section VIII.Div 1 (ASME) for liquids; inspection certificate EN-10204-3.1; for material; ATEX-certificate; EAC-certificate; with valve pass and laser marking
Technical specifications
| Inlet G | 3/4" |
|---|---|
| Outlet | G 1 1/4" |
| DN | 18 mm |
| Set pressure | 8/800 |
| Inlet G | 3/4" |
| Outlet | G 1 1/4" |
| DN | 18 mm |
| Set pressure | 8/800 |
| Unit | bar/kPa |
| Seal | EPDM |
| Medium temperature | -40...+170 °C |
| Design | ATEX |
