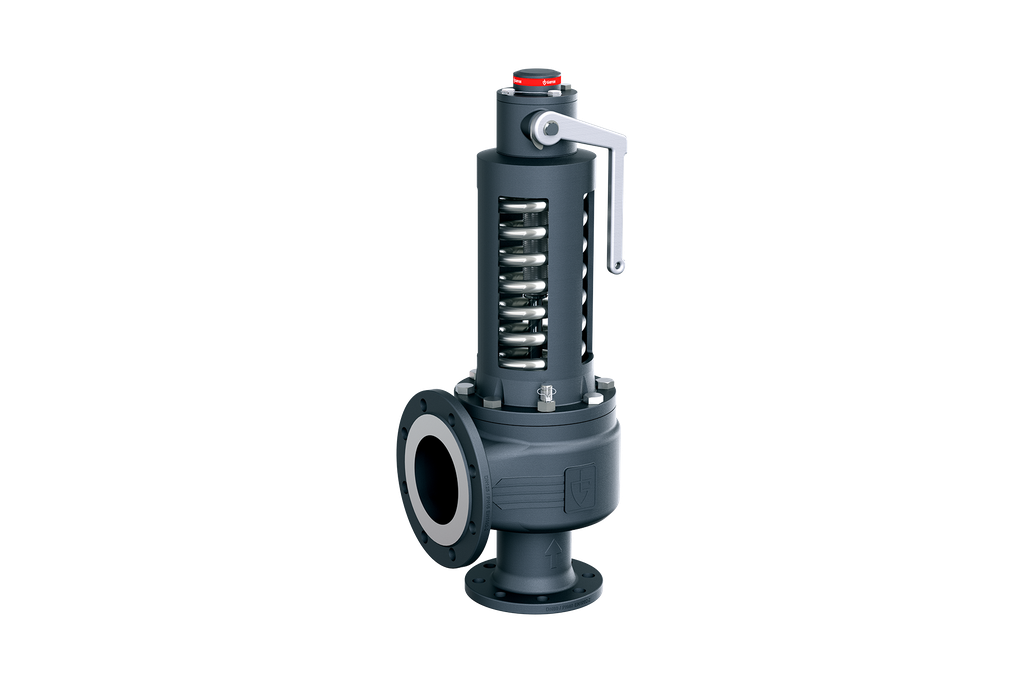

Safety valve; Gas-proof cover; With lifting lever; Body Ductile iron; Application: Liquids, Compressed air, gases, vapors; Inlet DN100/PN40; Outlet DN150/PN16; Seal Metallic; Medium temperature -10...+350°C; Set pressure 7,5bar; SIL Evaluation; With Inductive limit switches
Country of origin: Germany
Weight: 93.5 Kg
Short Itemnumber: SV521004W1007.501
Sicherheitsventil; gasdichte Kappe; mit Lüftehebel; Körper Sphäroguss; Anwendung: Flüssigkeiten, Druckluft, Gase, Dämpfe; Eintritt DN100/PN40; Austritt DN150/PN16; Dichtung metallisch; Mediumstemperatur -10...+350°C; Einstelldruck 7,5bar; SIL Bewertung; mit Induktive Endschalter
Technical specifications
| Inlet | DN100/PN40 |
|---|---|
| Seal | Metallic |
| Set pressure | 7,5 bar |
| Medium temperature | -60...+350 °C |
| Inlet | DN100/PN40 |
| Seal | Metallic |
| Set pressure | 7,5 bar |
| Medium temperature | -60...+350 °C |
SV52-1004W-100-7,5-01
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV52 · DE
Data sheet 18,3 MB Updated 29/07/2026
CAD / 3D
1-
STP
CADSTEP · SV521004W1007.501
CAD-STEP 27,4 MB Updated 04/10/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV52 · EN
Data sheet 18,4 MB Updated 29/07/2026
CAD / 3D
1-
STP
CADSTEP · SV521004W1007.501
CAD-STEP 27,4 MB Updated 04/10/2026
