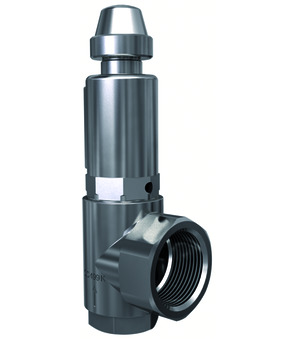

SV48-12-15,8-3-3E0
safety valve series SV48; gas-proof with metal bellow; without lifting; body stainless steel AISI 316L; seal PTFE; application: Vapours, gases and liquids; medium temperature -60...225°C; inlet female thread G1/2"; outlet female thread G1/2", DN 15,8mm, set pressure 3bar; ATEX area 1 and 21; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; and material
Country of origin: Germany
Weight: 0.398 Kg
Short Itemnumber: SV481215.833E0
safety valve series SV48; gas-proof with metal bellow; without lifting; body stainless steel AISI 316L; seal PTFE; application: Vapours, gases and liquids; medium temperature -60...225°C; inlet female thread G1/2"; outlet female thread G1/2", DN 15,8mm, set pressure 3bar; ATEX area 1 and 21; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; and material
| Design | ATEX |
