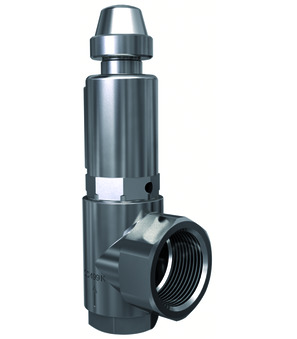

Safety valve Series SV32; With twist lifting; Body Stainless steel AISI 316L; Cap Stainless steel AISI 316; Application: Compressed air, Non-toxic gases, vapors; Inlet G 11/4"; Outlet G 2"; DN 30mm; Set pressure 1bar; Seal FKM; Medium temperature -20...200°C
Country of origin: Germany
Weight: 0.4 Kg
Short Itemnumber: SV32114W301
safety valve series SV32; with twist lifting; body stainless steel AISI 316L; cap stainless steel AISI 316; application: compressed air, non-toxic gases, vapors; inlet G 11/4"; outlet G 2"; DN 30mm; set pressure 1bar; seal FKM; medium temperature -20...200°C
Technical specifications
| Inlet G | 11/4" |
|---|---|
| Outlet | G 2" |
| DN | 30 mm |
| Set pressure | 1 bar |
| Inlet G | 11/4" |
| Outlet | G 2" |
| DN | 30 mm |
| Set pressure | 1 bar |
| Seal | FKM |
| Medium temperature | -20...+200 °C |
SV32-114W-30-1
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV32 · DE
Data sheet 8,2 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV32 · EN
Data sheet 8,1 MB Updated 13/06/2026
