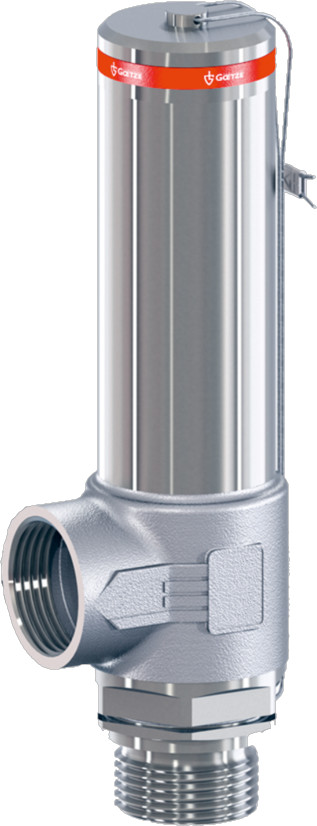

Safety valve Series SV30; For cryogenic applications; Inlet body 1.4404; Outlet body 1.4408; Seal PTFE; Temperature range -200...+200°C; Gas-proof cover; Application: Air; Vapors; Gases And Liquids; Free of oil and grease; Inlet male G1/2"; DN 10,5mm; Outlet female G3/4"; Set pressure 40Bar
Country of origin: Germany
Weight: 0.7 Kg
Short Itemnumber: SV3012W110.540
safety valve series SV30; for cryogenic applications; inlet body AISI 316L; outlet body AISI 316; seal PTFE; temperature range -200...+200°C; gas-proof cover; application: air; vapors; gases and liquids; free of oil and grease; inlet male G1/2"; DN 10,5mm; outlet female G3/4"; set pressure 40bar
Technical specifications
| Inlet male | G 1/2" |
|---|---|
| DN | 10,5 mm |
| Outlet female | G 3/4" |
| Set pressure | 40 bar |
| Inlet male | G 1/2" |
| DN | 10,5 mm |
| Outlet female | G 3/4" |
| Set pressure | 40 bar |
SV30-12W1-10,5-40
Documents
German / Deutsch
Data Sheets
1-
PDF
Datenblatt · Sicherheitsventil Serie SV30 · DE
Data sheet 10,3 MB Updated 13/06/2026
English
Data Sheets
1-
PDF
Data sheet · Safety valve Series SV30 · EN
Data sheet 10,3 MB Updated 13/06/2026
