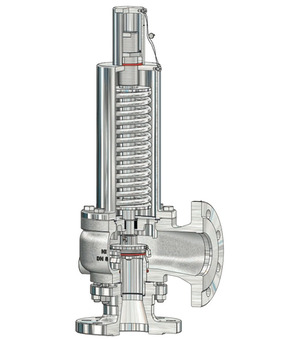

Safety valve SV10-100-60-11-V-4J
safety valve series SV10; for vapors, gases and liquids; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; inlet DN100/PN16; outlet DN100/PN16; DN 60mm; valve head C; seat seal FPM; other seals FPM; set pressure 11bar; temperature range -20...+200°C; flow 10210 Nm3/h; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; inspection certificate EN-10204-2.2; for function, inlet body and cone Country of origin EU
Country of origin: Germany
Short Itemnumber: SV101006011V4J
safety valve series SV10; for vapors, gases and liquids; body stainless steel AISI 316Ti; spring cover and outlet body stainless steel AISI 316Ti; inlet DN100/PN16; outlet DN100/PN16; DN 60mm; valve head C; seat seal FPM; other seals FPM; set pressure 11bar; temperature range -20...+200°C; flow 10210 Nm3/h; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; inspection certificate EN-10204-2.2; for function, inlet body and cone Country of origin EU
| dimension | |
|---|---|
| DN | 60 mm |
| Inlet | DN100/PN16 |
| Outlet | DN100/PN16 |
| function | |
| Valve head | C |
| materials | |
| Seat seal | FPM |
| Other seals | FPM |
| characteristics | |
| Set pressure | 11 bar |
