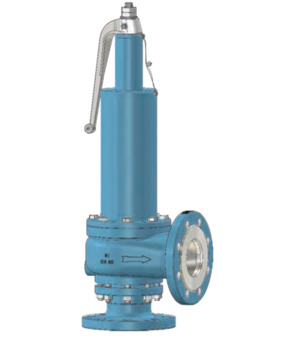

Safety valve DN15/PN16-DN15/PN16-12,5-C-EPDM-EPDM-5

Safety valve DN15/PN16-DN15/PN16-12,5-C-EPDM-EPDM-5

Safety valve Series SV09; For vapors, gases and liquids; Body steel ASTM A105; Spring cover And Outlet body EN-GJS-400-18-LT; Inlet DN15/PN16; Outlet DN15/PN16; DN 12,5mm; Valve head C; Seat seal EPDM; Other seals EPDM; Set pressure 5bar

Intrastat No.: 84814010
Country of origin: Germany Made in Europe
Weight: 4.3 Kg
Short Itemnumber: SV091512.55E
https://www.stasto.ro/web/image/product.template/106747/image_1920?unique=1a28827

safety valve series SV09; for vapors, gases and liquids; body steel ASTM A105; spring cover and outlet body EN-GJS-400-18-LT; inlet DN15/PN16; outlet DN15/PN16; DN 12,5mm; valve head C; seat seal EPDM; other seals EPDM; set pressure 5bar

3.672,00 lei 3672.0 RON 3.672,00 lei

Not Available For Sale

excl. tax
  • DN
  • Inlet
  • Outlet
  • Valve head
  • Body
  • Seat seal
  • Seat seal
  • Other seals
  • Other seals
  • Cap
  • Set pressure

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Body Steel ASTM A105
Cap Ductile iron EN-GJS-400-18-LT
Inlet DN15/PN16
Outlet DN15/PN16
All specifications (11)
Documents
Data sheets, drawings and CAD files
Body Steel ASTM A105
Cap Ductile iron EN-GJS-400-18-LT
Inlet DN15/PN16
Outlet DN15/PN16
DN 12,5 mm
Valve head C
Seat seal EPDM
Other seals EPDM
Set pressure 5 bar
Seat seal EPDM
Other seals EPDM

SV09-15-12.5-5-E

Documents

1 Documents 2 Languages

German / Deutsch
ZIP

Data Sheets

1
English
ZIP

Data Sheets

1
No spare parts are available for this product.
