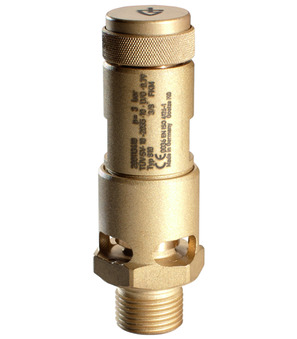

SV01-34-16-5,2
safety valve series SV01; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -60…225°C; seal FKM; connection G 3/4"; DN 16mm; set pressure 5,2bar
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.364 Kg
Short Itemnumber: SV0134165.2
Country of origin: Germany
Weight: 0.364 Kg
Short Itemnumber: SV0134165.2
safety valve series SV01; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -60…225°C; seal FKM; connection G 3/4"; DN 16mm; set pressure 5,2bar
| dimension | |
|---|---|
| Male thread | G 3/4" |
| DN | 16 mm |
| materials | |
| Seal | FKM |
| characteristics | |
| Set pressure | 5,2 bar |
