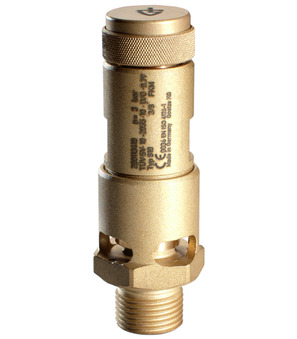

Safety valve SV01-20-40-9-3C

Name: Safety valve SV01-20-40-9-3C
Brand: STASTO
SKU: SV01-20-40-9-3C
Price: 1510.1 RON
Availability: InStock

Safety valve Series SV01; With twist lifting; Body Brass; Compression spring Stainless steel; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20…200°C; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Seal FKM; Connection G 2"; DN 40mm; Set pressure 9bar

Intrastat No.: 84814090
Country of origin: Germany
Weight: 2.5 Kg
Short Itemnumber:SV01204093C

Sicherheitsventil; mit Drehanlüftung; Körper Messing; Druckfeder Edelstahl; Anwendung: Druckluft, ungiftige, nicht brennbare Gase, die frei austreten dürfen; Mediumstemperatur -20…200°C; inkl. Abnahmeprüfzeugnis EN-10204-3.1; für Druck, Funktion und Dichtheit; Dichtung FKM; Anschluss G 2"; DN 40mm; Einstelldruck 9bar

1.510,10 lei 1510.1 RON 1.510,10 lei

Connection
- G 2"
DN
- 40 mm
Seal
- FKM
Set pressure
- 9 bar

This combination does not exist.

Availability:

Adaugă în coș

dimension
Connection	G 2"
DN	40 mm
materials
Seal	FKM
characteristics
Set pressure	9 bar
