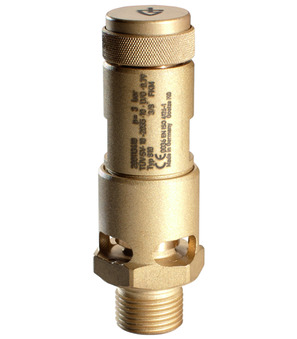

Safety valve FKM-1/4"-7,5-10

Name: Safety valve FKM-1/4"-7,5-10
Brand: STASTO
SKU: SV01-14-7.5-10-3C
Price: 228.0 RON
Availability: InStock

Safety valve Series SV01; With twist lifting; Body Brass; Compression spring Stainless steel; Application: Compressed air, Non-toxic and non-inflammable gases, which are allowed to flow freely; Medium temperature -20…200°C; Incl. Inspection certificate EN-10204-3.1; For pressure, function and tightness; Seal FKM; Connection G 1/4"; DN 7,5mm; Set pressure 10bar

Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.08 Kg
Short Itemnumber:SV01147.5103C

safety valve series SV01; with twist lifting; body brass; compression spring stainless steel; application: compressed air, non-toxic and non-inflammable gases, which are allowed to flow freely; medium temperature -20…200°C; incl. inspection certificate EN-10204-3.1; for pressure, function and tightness; seal FKM; connection G 1/4"; DN 7,5mm; set pressure 10bar

228,00 lei 228.0 RON 228,00 lei

Connection
- G 1/4"
DN
- 7,5 mm
Seal
- FKM
Set pressure
- 10 bar

This combination does not exist.

Availability:

Adaugă în coș

dimension
Connection	G 1/4"
DN	7,5 mm
materials
Seal	FKM
characteristics
Set pressure	10 bar
