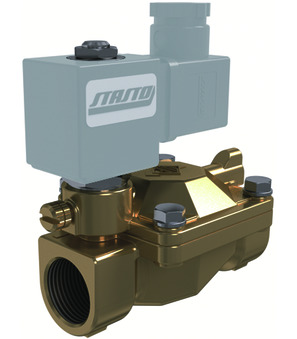

2/2-way solenoid valve Series 21W-MR; Pilot-operated; NC; Body Brass; Tube Stainless steel One-piece; Seal EPDM; Medium temperature -10...+140°C; With adjustable closing delay; Manual operation; Standard coil BDA; Connector size 32mm; G 3/4"; DN 19mm; Pressure AC/DC 0,2-16bar; Length 104mm
Intrastat No.: 84818099
Country of origin: Italy
Weight: 1.3 Kg
Short Itemnumber: SL01134E
Country of origin: Italy
Weight: 1.3 Kg
Short Itemnumber: SL01134E
2/2-way solenoid valve series 21W-MR; pilot-operated; NC; body brass; tube stainless steel one-piece; seal EPDM; medium temperature -10...+140°C; with adjustable closing delay; manual operation; standard coil BDA; connector size 32mm; G 3/4"; DN 19mm; pressure AC/DC 0,2-16bar; length 104mm
Technical specifications
| DN | 19 mm |
|---|---|
| Pressure AC/DC | 0,2...16 bar |
| Length | 104 mm |
| Pressure DC | 0,2...16 bar |
| DN | 19 mm |
| Pressure AC/DC | 0,2...16 bar |
| Length | 104 mm |
| Pressure DC | 0,2...16 bar |
| Seal | NBR |
| Medium temperature | -10...+90 °C |
| Female thread | G 3/4" |
| Brand | STASTO |
No spare parts are available for this product.
