Siphon in U-shape According to DIN 16282 1/2"-Stahl

Price.

206,00 lei
Siphon in U-shape According to DIN 16282 Series SI001 Store
  1. Products
  2. Pneumatics
  3. Hoses, Tubes, Manometer and accessories
  4. Accessories for manometers
  5. Siphon in U-shape According to DIN 16282 Series SI001
  6. SI001-12-C
Siphon in U-shape According to DIN 16282 1/2"-Stahl
Siphon in U-shape According to DIN 16282 1/2"-Edelstahl 1.4571
Siphon in U-shape According to DIN 16282 1/2"-Edelstahl 1.4571
940,90 lei
940,90 lei
Siphon in ring-shape According to DIN 16282 1/2"-Edelstahl 1.4571
Siphon in ring-shape According to DIN 16282 1/2"-Edelstahl 1.4571
950,10 lei
950,10 lei

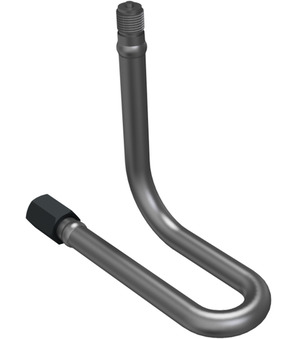

Siphon in U-shape According to DIN 16282 1/2"-Stahl

Siphon in U-shape According to DIN 16282 Series SI001; Connection spigot; Pressure tap horizontal only; Clamping sleeve According to DIN 16283, AF27; Operating pressure max. 160bar at 120°C at siphon inlet, max. 120bar at 300°C at siphon inlet, max. 100bar at 400°C at siphon inlet; Connection 1/2"; Material Stahl

Intrastat No.: 90269000
Country of origin: Germany
Weight: 0.77 Kg
Short Itemnumber:SI00112C
https://www.stasto.ro/web/image/product.template/134245/image_1920?unique=b5946c2

siphon in U-shape according to DIN 16282 series SI001; connection spigot; pressure tap horizontal only; clamping sleeve according to DIN 16283, AF27; operating pressure max. 160bar at 120°C at siphon inlet, max. 120bar at 300°C at siphon inlet, max. 100bar at 400°C at siphon inlet; connection 1/2"; material Stahl

206,00 lei 206.0 RON 206,00 lei

Not Available For Sale

  • Connection
  • Material

This combination does not exist.

Availability:
Contact Us
dimension
Connection 1/2"
materials
Material Steel

Data sheets, Instructions, 3D-files and Certificates...

In your language
ZIP
Data Sheets
1
Data sheet_Siphon in U-shape According to DIN 16282 Series SI001_EN.pdf
Download
CAD / 3D
1
CADSTEP_SI00112C.stp
Download

ZIP
Datové listy
1
Datový list_Vodní předloha U dle DIN 16282 série SI001_CS.pdf
Download

ZIP
Data Sheets
1
Datablad_Vandlås-rør i U-form i henhold til DIN 16282 Serie SI001_DA_DK.pdf
Download

ZIP
Datenblätter
1
Datenblatt_Wassersackrohr in U-Form gemäß DIN 16282 Serie SI001_DE.pdf
Download

ZIP
Data Sheets
1
Δελτίο δεδομένων_Σωλήνας σιφονιού σε σχήμα U σύμφωνα με DIN 16282 Σειρά SI001_EL_GR.pdf
Download

ZIP
Data Sheets
1
Ficha técnica_Tubo sifón en forma de U según DIN 16282 Serie SI001_ES.pdf
Download

ZIP
Data Sheets
1
Tietolehti_Vesilukko U-muodossa mukaisesti DIN 16282 Sarja SI001_FI.pdf
Download

ZIP
Declarations of Conformity
1
Fiche technique_Tube siphon en U pour manomètre conformément à DIN 16282 Série SI001_FR.pdf
Download

ZIP
Data Sheets
1
Podatkovni list_Vodomjerna cijev u obliku slova U prema DIN 16282 Serija SI001_HR.pdf
Download

ZIP
Adatlapok
1
Adatlap_csőkiegyenlítő U-alakzat szabvány DIN 16282 sorozat SI001_HU.pdf
Download

ZIP
Data Sheets
1
Scheda tecnica_Tubo sifone a U per condensa secondo DIN 16282 Serie SI001_IT.pdf
Download

ZIP
Data Sheets
1
Datablad_Vannlås i U-form i henhold til DIN 16282 Serie SI001_NB_NO.pdf
Download

ZIP
Declarations of Conformity
1
Datasheet_Condensaatzakbuis in U-vorm conform DIN 16282 Serie SI001_NL.pdf
Download

ZIP
Karty katalogowe
1
Arkusz danych_rurka syfonowa w kształcie U zgodnie z DIN 16282 Seria SI001_PL.pdf
Download

ZIP
Declarations of Conformity
1
Fișă de date_Sifon în formă de U în conformitate cu DIN 16282 serie SI001_RO.pdf
Download

ZIP
Podatkovni listi
1
Podatkovni list_Sifon v obliki črke U v skladu z DIN 16282 serija SI001_SL.pdf
Download

ZIP
Data Sheets
1
Tehnički list_sifon U oblika prema DIN 16282 serije SI001_SRLATIN.pdf
Download

ZIP
Data Sheets
1
Datablad_Vattenfickrör i U-form enligt DIN 16282 Serie SI001_SV.pdf
Download
No spare parts are available for this product.
