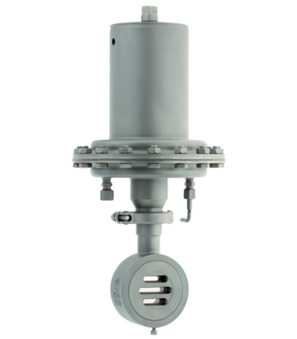

SG17-50-WWC0,3/1,2
sliding gate-pressure regulator; controlled by own medium; nominal pressure PN10/40; wafer type; material stainless steel AISI 316; diaphragm CR; fixed disc stainless steel AISI 316Ti coated; sliding disc carbon material; nominal diameter 50mm; kvs-value 45 (100%); characteristic linear; pressure range 0,3...1,2bar; length 43mm
Intrastat No.: 84818079
Country of origin: Germany
Weight: 13.0 Kg
Short Itemnumber: SG1750WWC0.31.2
Country of origin: Germany
Weight: 13.0 Kg
Short Itemnumber: SG1750WWC0.31.2
sliding gate-pressure regulator; controlled by own medium; nominal pressure PN10/40; wafer type; material stainless steel AISI 316; diaphragm CR; fixed disc stainless steel AISI 316Ti coated; sliding disc carbon material; nominal diameter 50mm; kvs-value 45 (100%); characteristic linear; pressure range 0,3...1,2bar; length 43mm
No Specifications
No spare parts are available for this product.
