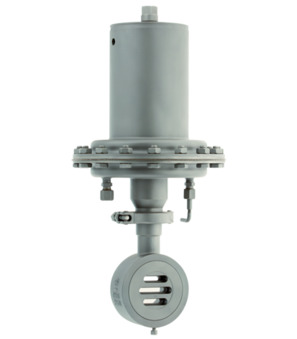

Sliding gate-pressure regulator SG17-15-WWF2/5-02

Sliding gate-pressure regulator SG17-15-WWF2/5-02

Sliding gate-pressure regulator Series SG17; Controlled by own medium; Nominal pressure PN10/40; Wafer type; Material Stainless steel 1.4408; Fixed disc Stainless steel 1.4571 Coated; Sliding disc SFC; Nominal diameter 15mm; Kvs-value 4 (100%); Characteristic linear; Pressure range 2...5bar; Length 33mm

Intrastat No.: 84818079
Country of origin: Germany Made in Europe
Short Itemnumber: SG1715WWF2502
https://www.stasto.ro/web/image/product.template/212055/image_1920?unique=4de5898

sliding gate-pressure regulator series SG17; controlled by own medium; nominal pressure PN10/40; wafer type; material stainless steel AISI 316/AISI 316Ti; fixed disc stainless steel AISI 316Ti coated; sliding disc SFC; nominal diameter 15mm; kvs-value 4 (100%); characteristic linear; pressure range 2...5bar; length 33mm

24.073,00 lei 24073.0 RON 24.073,00 lei

Not Available For Sale

excl. tax
  • DN
  • Length
  • Pressure range
  • Fixed disc
  • Sliding disc
  • Kvs-value
  • Characteristic

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Pressure range 2...5 bar
Fixed disc Stainless steel AISI 316Ti coated
Sliding disc SFC
DN 15 mm
All specifications (7)
Documents
Data sheets, drawings and CAD files
Pressure range 2...5 bar
Fixed disc Stainless steel AISI 316Ti coated
Sliding disc SFC
DN 15 mm
Kvs-value 2,6 (63%)
Characteristic Linear
Length 33 mm

SG17-15-WWF2/5-02

Documents

1 Documents

German / Deutsch
ZIP

Assembly and Operating Instructions

1
