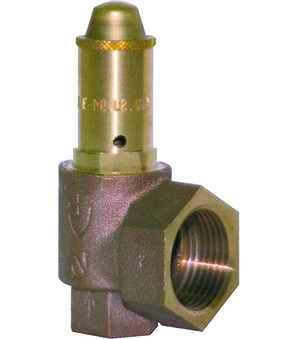

Safety valve, full stroke FKM--20…200°C-11/4"-2"-30-15

Safety valve, full stroke FKM--20…200°C-11/4"-2"-30-15

Safety valve, full stroke Series SF04; With twist lifting; With bronze-bellow; Body Bronze; Application: Toxic, flammable gases;; Seal FKM; Medium temperature -20…200°C°C; Inlet G 11/4"; Outlet G 2"; DN 30mm; Set pressure 15bar

Intrastat No.: 84814090
Country of origin: Germany Made in Europe
Weight: 4.09 Kg
Short Itemnumber: SF04114W3015V
https://www.stasto.ro/web/image/product.template/96755/image_1920?unique=29efce2

safety valve, full stroke series SF04; with twist lifting; with bronze-bellow; body bronze; application: toxic, flammable gases;; seal FKM; medium temperature -20…200°C°C; inlet G 11/4"; outlet G 2"; DN 30mm; set pressure 15bar

4.421,70 lei 4421.7 RON 4.421,70 lei

Not Available For Sale

excl. tax
  • Female thread
  • DN
  • Female thread 2
  • Seal
  • Set pressure
  • Medium temperature

This combination does not exist.

Availability:
See availability
Contact Us

Technical specifications

Seal FKM
Medium temperature -20...+200 °C
DN 30 mm
Set pressure 15 bar
All specifications (6)
Documents
Data sheets, drawings and CAD files
Seal FKM
Medium temperature -20...+200 °C
DN 30 mm
Set pressure 15 bar
Female thread G 1 1/4"
Female thread 2 G 2"

SF04-114W-30-15-V

Documents

1 Documents

Language-independent
ZIP

CAD / 3D

1
No spare parts are available for this product.
