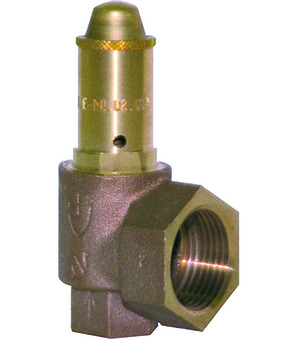

SF01-12W-15.8-10-3G
safety valve, full stroke series SF01; with twist lifting; body bronze; seal NBR; application: compressed air, non-toxic gases, vapors; medium temperature -30...130°C; inlet G 1/2"; outlet G 1"; DN 15,8mm; set pressure 10bar; incl. TÜV-inspection certificate EN-10204-3.2
Intrastat No.: 84814090
Country of origin: Germany
Weight: 0.48 Kg
Short Itemnumber: SF0112W15.8103G
Country of origin: Germany
Weight: 0.48 Kg
Short Itemnumber: SF0112W15.8103G
safety valve, full stroke series SF01; with twist lifting; body bronze; seal NBR; application: compressed air, non-toxic gases, vapors; medium temperature -30...130°C; inlet G 1/2"; outlet G 1"; DN 15,8mm; set pressure 10bar; incl. TÜV-inspection certificate EN-10204-3.2
| dimension | |
|---|---|
| DN | 15,8 mm |
| Inlet G | 1/2" |
| Outlet | G 1" |
| characteristics | |
| Set pressure | 10 bar |
No spare parts are available for this product.
