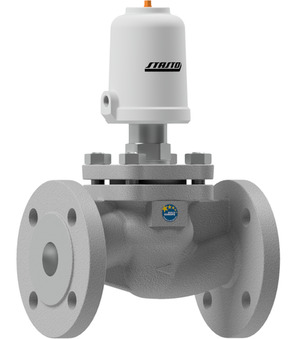

Pneumatically operated seat valve SE24-65-ST1252

Pneumatically operated seat valve SE24-65-ST1252

Pneumatically operated seat valve Series SE24-ST; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NC; Body Stainless steel AISI 316; Seal PTFE; Flange PN40; For liquids; Closing against flow; Medium temperature -30...+170°C; DN 65mm; Operating pressure 0...4,8bar; Control pressure 2,3...10bar; Diameter Actuator 125mm

Intrastat No.: 84818079
Country of origin: Germany
Weight: 10.1 Kg
Short Itemnumber: SE2465ST1252
https://www.stasto.ro/web/image/product.template/150239/image_1920?unique=3190a4b

pneumatically operated seat valve series SE24-ST; ATEX II 2G Ex h IIC T6…T2 X Gb / II 2D Ex h IIIC 85°C…220°C X Db; NC; body stainless steel AISI 316; seal PTFE; flange PN40; for liquids; closing against flow; medium temperature -30...+170°C; DN 65mm; operating pressure 0...4,8bar; control pressure 2,3...10bar; diameter actuator 125mm

16.441,90 lei 16441.9 RON 16.441,90 lei

Not Available For Sale

  • DN
  • Cable length
  • Flange
  • Diameter Actuator
  • Connector size
  • Design
  • Voltage
  • Voltage type
  • Operating pressure
  • Control pressure
  • Coil
  • Actuator
  • Approval

This combination does not exist.

Availability:
Contact Us

Share

dimension
DN 65 mm
Flange PN40
Diameter Actuator 125 mm
design
Design ATEX
pressure
Operating pressure 0...4,8 bar
Control pressure 2,3...10 bar
