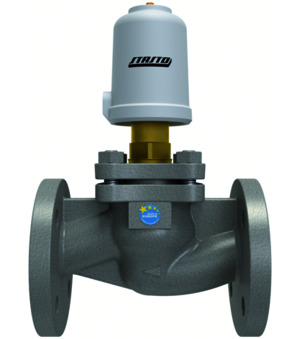

Pneumatically operated seat valve 40-0-16-4,5-10-50
pneumatically operated seat valve series SE09-GT; NC; body cast iron EN-GJL-250; seal PTFE; flange PN16; pressure compensated cone for high pressure; medium temperature -10...+170°C; DN 40mm; operating pressure 0-16bar; control pressure 4,5-10bar; diameter actuator 50mm
Weight: 4.56 Kg
Short Itemnumber: SE0940GT51
pneumatically operated seat valve series SE09-GT; NC; body cast iron EN-GJL-250; seal PTFE; flange PN16; pressure compensated cone for high pressure; medium temperature -10...+170°C; DN 40mm; operating pressure 0-16bar; control pressure 4,5-10bar; diameter actuator 50mm
This product is no longer available.
| dimension | |
|---|---|
| DN | 40 mm |
| Diameter Actuator | 50 mm |
| pressure | |
| Operating pressure | 0...16 bar |
| Control pressure | 4,5...10 bar |
| characteristics | |
| Medium temperature | -10...+170 °C |
No spare parts are available for this product.
